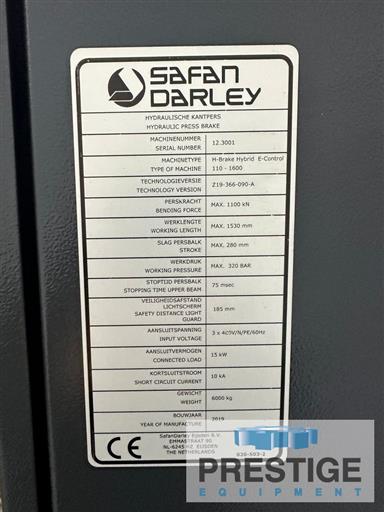

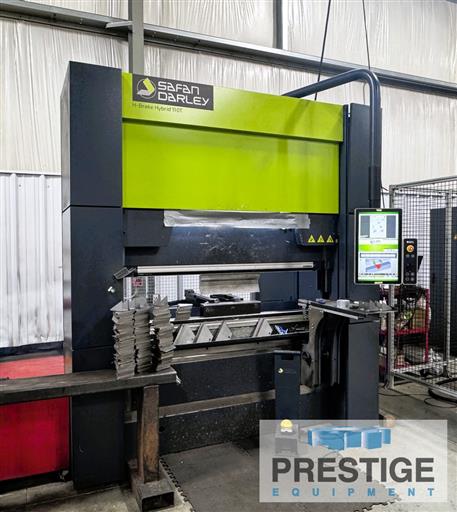

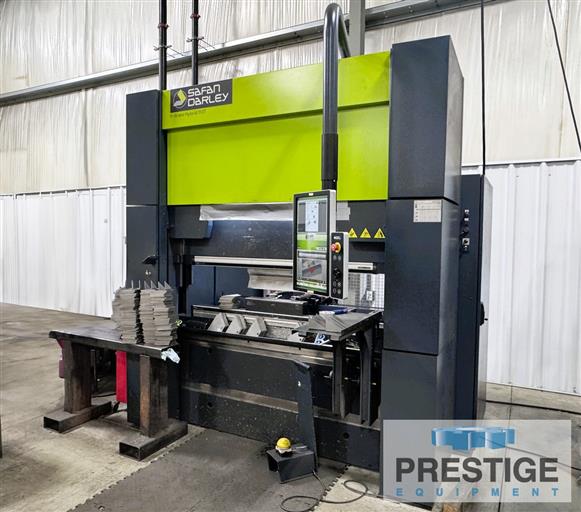

Safan-Darley H-Brake Hybrid124 T x 5' Hybrid CNC Press Brake
Model:
H-Brake Hybrid 110T
Age:
2019
Ref#:
44500
Prestige Equipment is the world's leading provider of Safan-Darley H-Brake Hybrid124 T x 5' Hybrid CNC Press Brake & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hydraulic Press Brakes for sale.
Product Specifications
Features:
✓

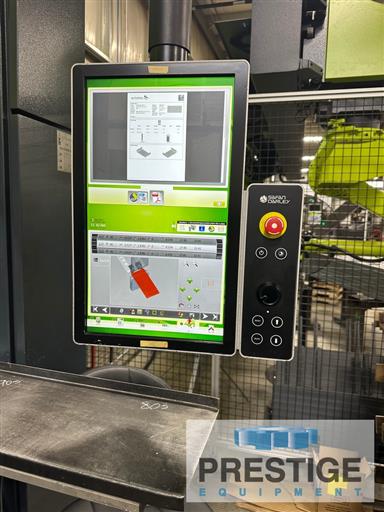

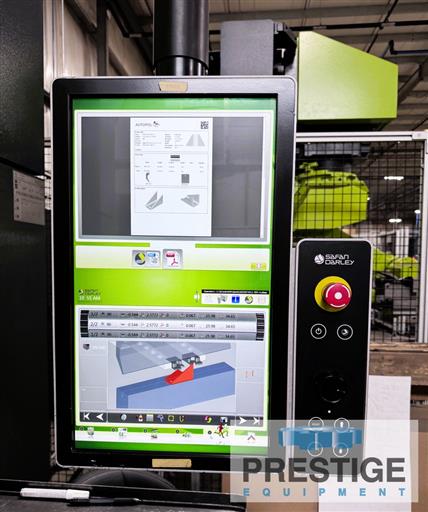

Safan E-Control 7-Axis CNC Control with 21" Touch Screen
✓

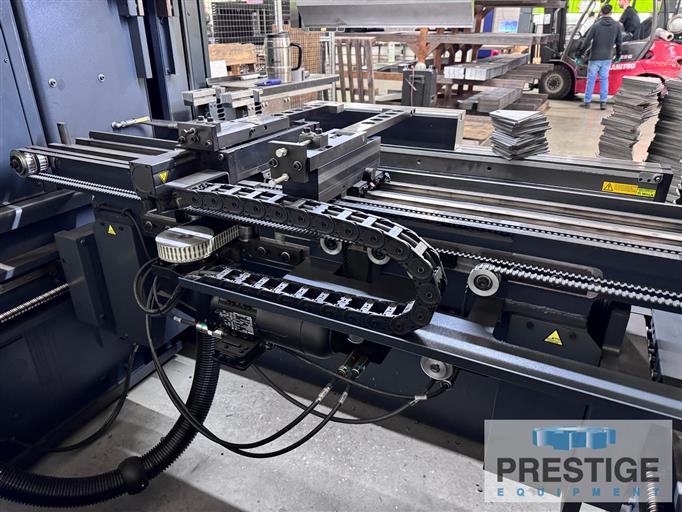

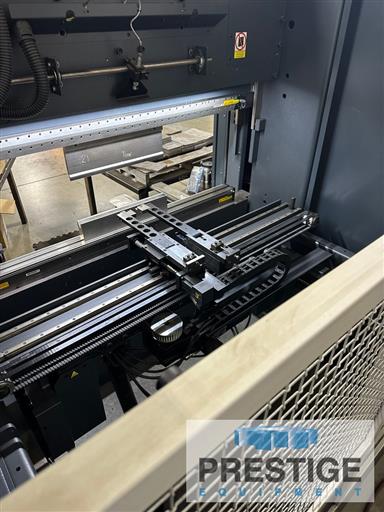

5-Axis CNC Back Gauge (X,R,Z1,Z2, X Prime)
✓

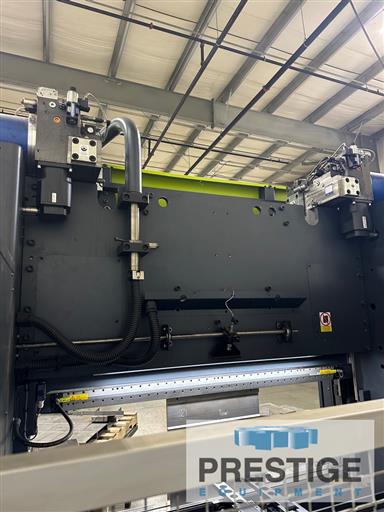

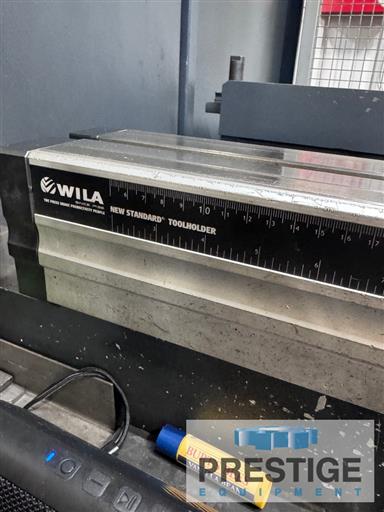

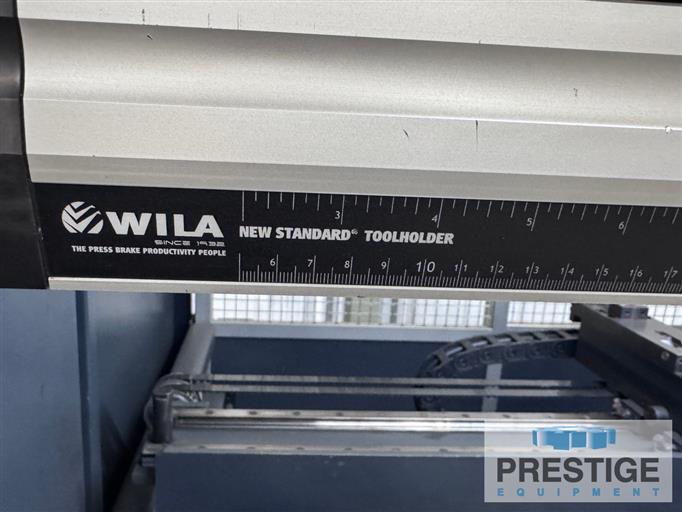

Wila New Standard Hydraulic Top Ram & bottom Die Clamp Holder System
✓

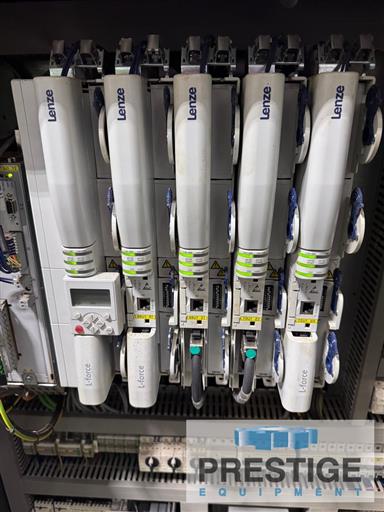

Servo Electric Drive
✓
Programmable Safety Light Guard
✓
Electric Foot Switch
Product Specifications
CAPACITY:
Tonnage Capacity
124 Ton
Maximum Work Length
62.99"
Maximum Bending Length
60.23"
Stroke Length
11.02"
Q Dimension (Daylight)
21.85"
Table Height
40.35"
Closing Speed
543 IPM
Bending Speed
23.6 IPM
Return Speed
543 IPM
Drive Motor
20 HP
Approximate Dimensions
105" x 72" x 117"
Approximate Weight
13,200 Lbs
Equipped With:
Safan E-Control 7-Axis CNC Control with 21" Touch Screen
5-Axis CNC Back Gauge (X,R,Z1,Z2, X Prime)
Wila New Standard Hydraulic Top Ram & bottom Die Clamp Holder System
Servo Electric Drive
Programmable Safety Light Guard
Electric Foot Switch
NOTE: Delayed Release, New Machine Coming In
Features:
✓
Safan E-Control 7-Axis CNC Control with 21" Touch Screen
✓
5-Axis CNC Back Gauge (X,R,Z1,Z2, X Prime)
✓
Wila New Standard Hydraulic Top Ram & bottom Die Clamp Holder System
✓
Servo Electric Drive
✓
Programmable Safety Light Guard
✓
Electric Foot Switch
