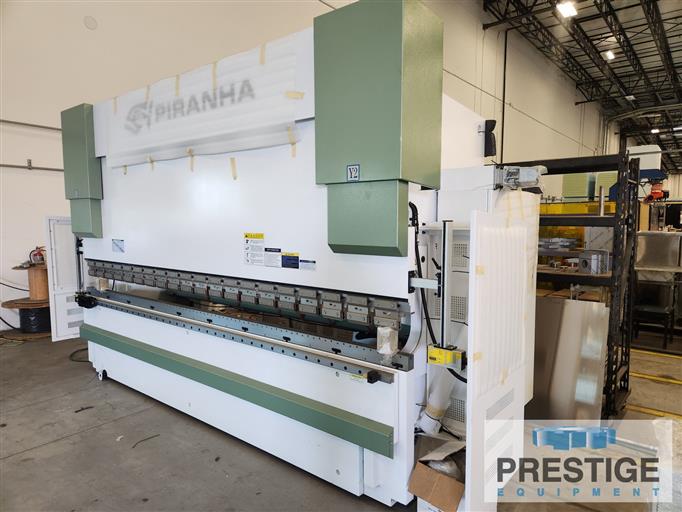

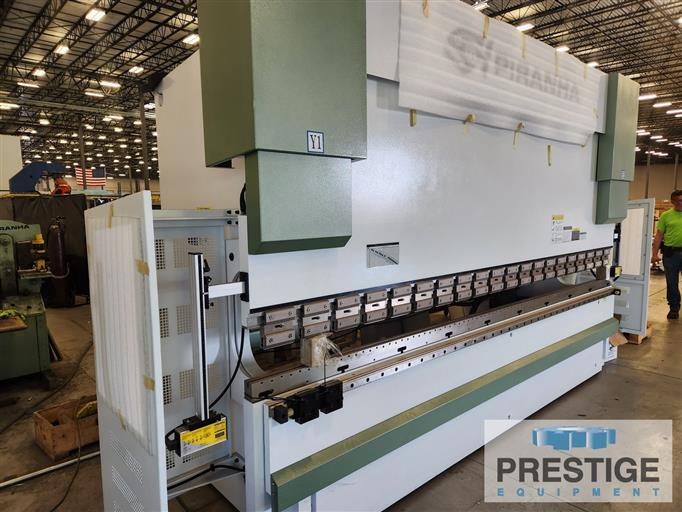

180 Ton x 3.96 M Piranha 6-Axis CNC Hydraulic Press Brake
Model:
180-13
Age:
2021
Ref#:
32511
Prestige Equipment is the world's leading provider of 180 Ton x 3.96 M Piranha 6-Axis CNC Hydraulic Press Brake & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hydraulic Press Brakes for sale.
Product Specifications
Features:
✓
Delem DA-66T 6-Axis CNC Control
✓
4-Axis CNC Back Gauge (X,R,Z1,Z2)
✓

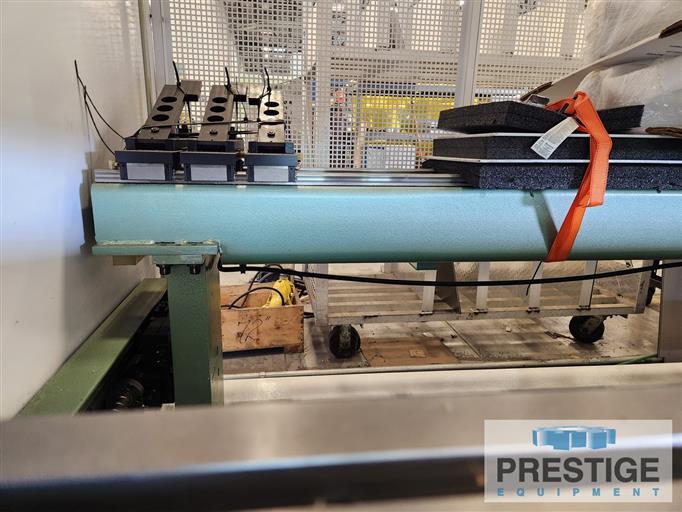

Linear Guided Front Sheet Supports
✓
Hydraulic Crowning System built into Bed
Product Specifications
CAPACITY:
Tonnage Capacity
180 Ton
Overall Length of Bed and Ram
4100 MM
Distance Between Housings
3594 MM "
Stroke Length
216 MM
Open Height
439 MM
Closed Height
224 MM
Throat Depth
409 MM
Approach Speed
10185 MM/MIN
Work Speed
660 MM/MIN
Return Speed
8382 MM/MIN
Repeatability
0 MM
Motor
15 KW
Approximate Dimensions
5004 MM x 1854 MM x 2667 MM
Approximate Weight
14515 KG
Equipped With:
Delem DA-66T 6-Axis CNC Control
4-Axis CNC Back Gauge (X,R,Z1,Z2)
Linear Guided Front Sheet Supports
Hydraulic Crowning System built into Bed
NOTE:
Brand New Machine, Never Used
Features:
✓
Delem DA-66T 6-Axis CNC Control
✓
4-Axis CNC Back Gauge (X,R,Z1,Z2)
✓
Linear Guided Front Sheet Supports
✓
Hydraulic Crowning System built into Bed
