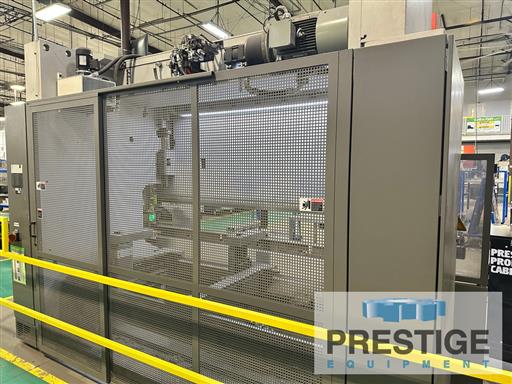

Bystronic Xpert 150/3100 165 Ton 6-Axis CNC Press Brake
Model:
Xpert 150/3100
Age:
2013
Ref#:
44097
Prestige Equipment is the world's leading provider of Bystronic Xpert 150/3100 165 Ton 6-Axis CNC Press Brake & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hydraulic Press Brakes for sale.
Product Specifications
Features:
✓
Bystronic 9-Axis CNC Control
✓
Programmable Ram Depth (Y1,Y2)
✓

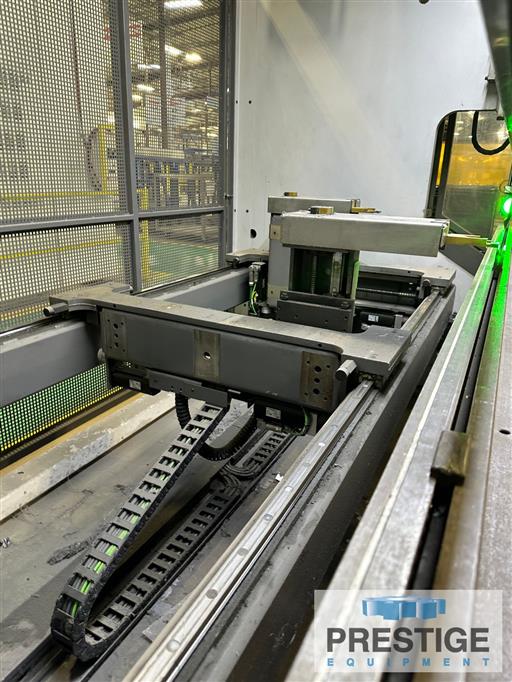

6-Axis CNC Back Gauge (X,X1,R,R1,Z1,Z2)
✓
CNC Crowning
✓
Bystronic RF-A Hydraulic Upper Clamping
✓
Wila Manual Lower Clamping
✓
Front Support Arms
✓
Electric Foot Switch Control
✓
Fast Bend Safety System With Automatic Height Adjust
Product Specifications
CAPACITY:
Maximum Tonnage Capacity
165 Ton
Overall Working Length
........... 122.04"
Distance Between Housings
108"
Open Height
19.7"
Throat Depth
15.8"
Stroke Length
12.40"
Speed - Approach
7.48 IPS
Speed - Working
0.78 IPS
Speed - Return
7.87 IPS
Main Motor (480/3/60).................. 30 HP
30 HP
Approx. Dimensions, L x W, H
153.2" x 74.8" x 104.7"
Approx. Shipping Weight
24,500 Lbs
Equipped With:
Bystronic 9-Axis CNC Control
Programmable Ram Depth (Y1,Y2)
6-Axis CNC Back Gauge (X,X1,R,R1,Z1,Z2)
CNC Crowning
Bystronic RF-A Hydraulic Upper Clamping
Wila Manual Lower Clamping
Front Support Arms
Electric Foot Switch Control
Fast Bend Safety System With Automatic Height Adjust
480 V, 3 PH Electrics
NOTES:
Inspect in Plant Under Power
Features:
✓
Bystronic 9-Axis CNC Control
✓
Programmable Ram Depth (Y1,Y2)
✓
6-Axis CNC Back Gauge (X,X1,R,R1,Z1,Z2)
✓
CNC Crowning
✓
Bystronic RF-A Hydraulic Upper Clamping
✓
Wila Manual Lower Clamping
✓
Front Support Arms
✓
Electric Foot Switch Control
✓
Fast Bend Safety System With Automatic Height Adjust
