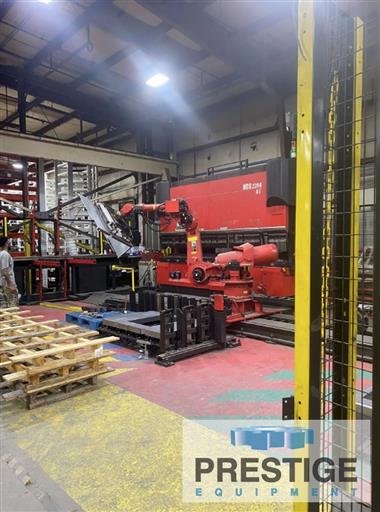

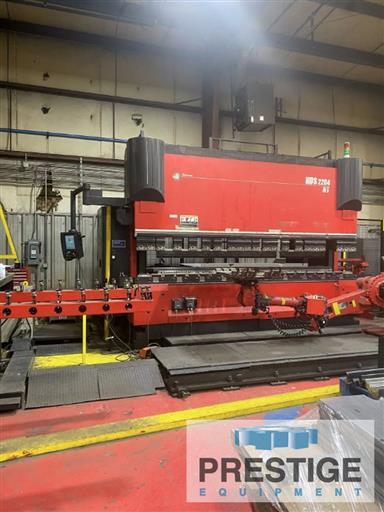

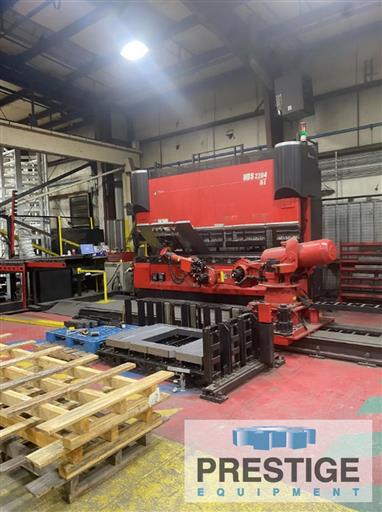

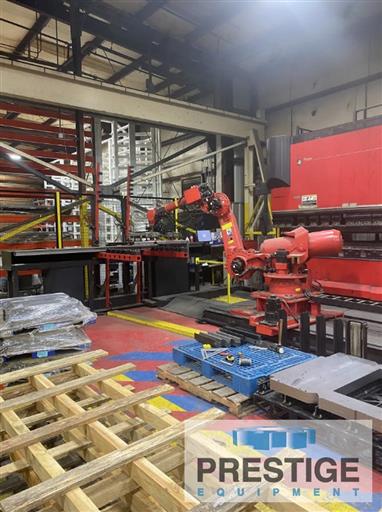

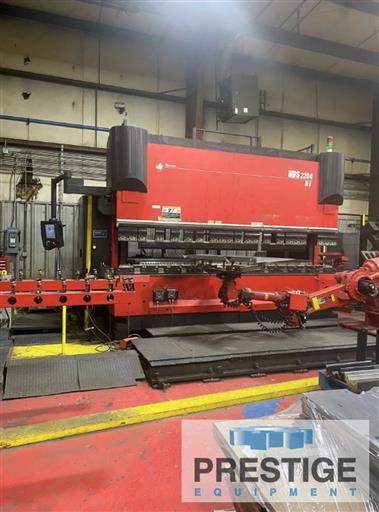

Amada HDS-2204 NTW 8 Axis CNC Press Brake W/Robotic Manipulator
Model:
HDS-2204 NTW
Age:
2012
Ref#:
45073
Prestige Equipment is the world's leading provider of Amada HDS-2204 NTW 8 Axis CNC Press Brake W/Robotic Manipulator & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hydraulic Press Brakes for sale.
Product Specifications
Features:
✓
Amada AMNC/PC CNC Control
✓
Hydraulic Upper Clamping
✓
5-Axis CNC Back Gauge
✓
CNC Crowning
✓

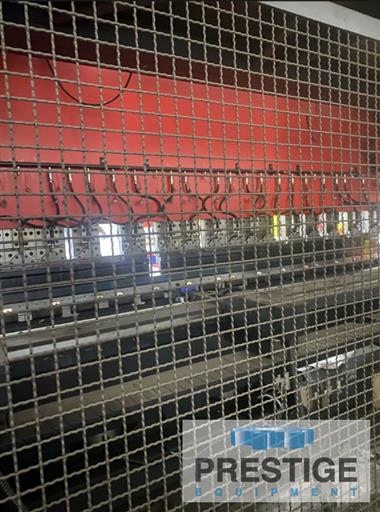

Hydraulic Tool Clamping
✓
Astro 165W NT 6-Axis CNC Robot
✓

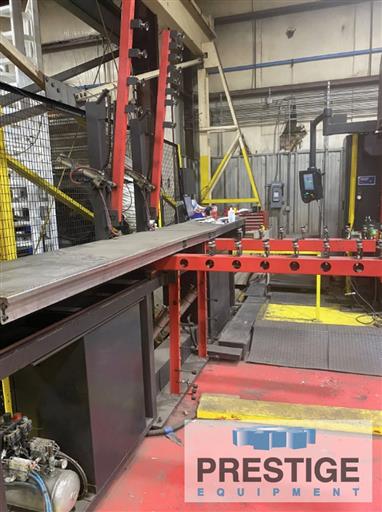

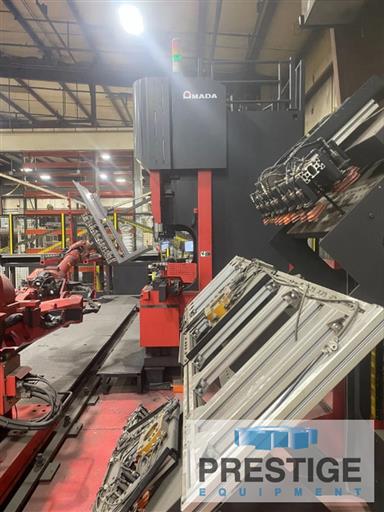

Part Handling Fixtures
✓
Electric Foot Switch
✓
Flush Floor
Product Specifications
CAPACITY:
Maximum Tonnage Capacity
242 Ton
Overall Length Of Bed & Ram
4280 MM
Distance Between Housings
3759 MM
Open Height
660 MM
Throat Depth
450 MM
Stroke Length
250 MM
Approach Speed
7.87 IPS
Bending Speed
.78 IPS
Return Speed
7.87 IPS
Motor
21 KW
Approx. Machine Dimensions L x W x H
5874 MM x 2754 MM x 3216 MM
Approx. Machine Weight
25270 KG

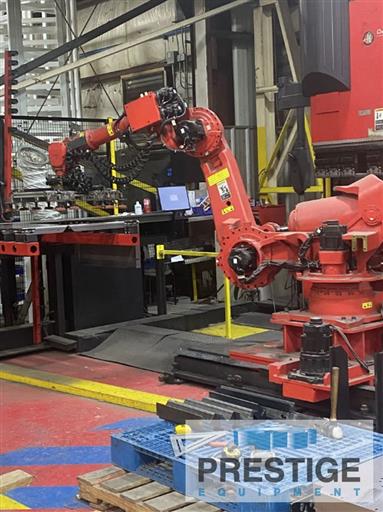

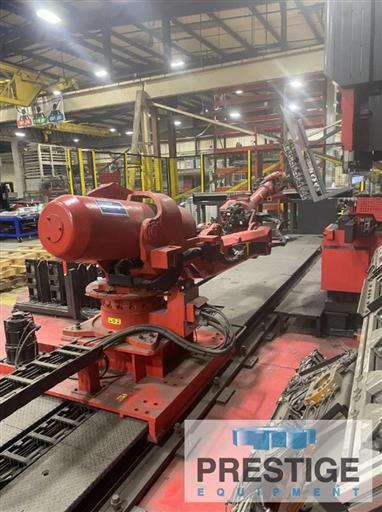

ASTRO 165W NT ROBOTIC BENDING SYSTEM:
Maximum Payload
165 KG
Controlled Axes
6
Rail Travel
6096 MM
Maximum Part Size
1501 MM x 3000 MM
Minimum Part Size
150 MM x 150 MM
Equipped With:
Amada AMNC/PC CNC Control
Hydraulic Upper Clamping
5-Axis CNC Back Gauge
CNC Crowning
Hydraulic Tool Clamping
Astro 165W NT 6-Axis CNC Robot
Part Handling Fixtures
Electric Foot Switch
Flush Floor
Features:
✓
Amada AMNC/PC CNC Control
✓
Hydraulic Upper Clamping
✓
5-Axis CNC Back Gauge
✓
CNC Crowning
✓
Hydraulic Tool Clamping
✓
Astro 165W NT 6-Axis CNC Robot
✓
Part Handling Fixtures
✓
Electric Foot Switch
✓
Flush Floor
