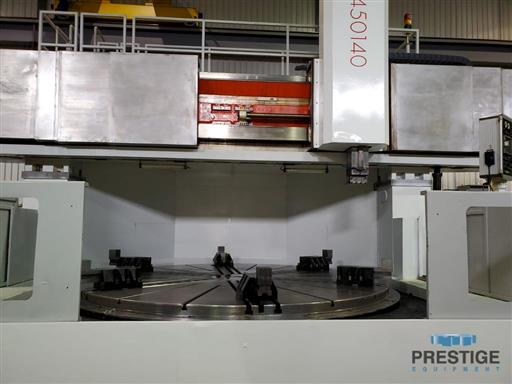

SMTCL GTC 450140 CNC Vertical Boring Mill
Model:
GTC 450140
Age:
2010
Ref#:
31532
Prestige Equipment is the world's leading provider of SMTCL GTC 450140 CNC Vertical Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓
Fanuc 18i-TB CNC Controls
✓
Ram with 12 Station Automatic Tool Changer
Product Specifications
SPECIFICATIONS:
Table Diameter
3998 MM
Maximum Swing
4999 MM
Maximum Turning Diameter
4500 MM
Maximum Work Height
1200 MM
Ram Cross Section
240 MM x 240 MM
X-Axis Stroke
-86 MM / +3900 MM
Table Speeds, 2-Steps
1 - 60 RPM
Table Weight Capacity
19958 KG
Cutting Feed Rate
3000 MM/MIN
Rapid Feed Rate
8000 MM/MIN
Main Motor
100 KW
Approximate Machine Dimensions
15000 MM x 8700 MM x 5700 MM
Approximate Machine Weight
59874 KG
Equipped With:
Fanuc 18i-TB 3-Axis CNC Controls, Pendant Mounted
12 Position Automatic Tool Changer
4009 MM 4-Jaw Chuck
Chip & Splash Guarding
Chip Conveyor System
NOTE:
Inspect In Plant Under Power!
