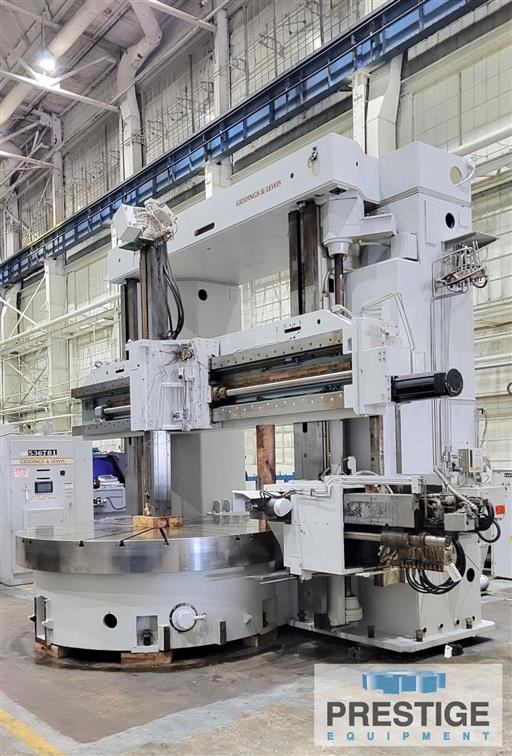

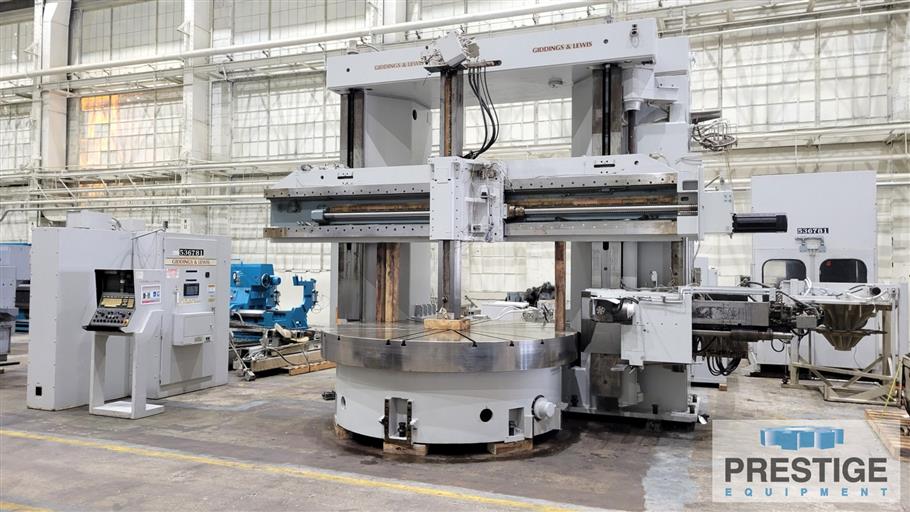

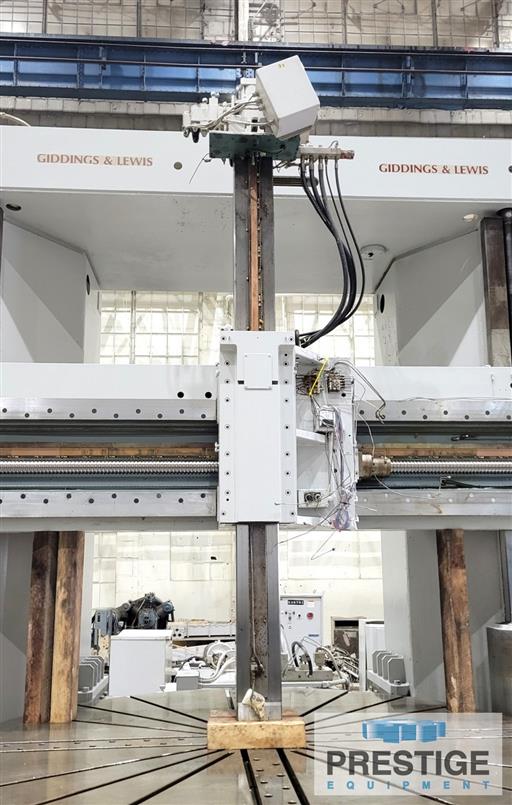

Giddings & Lewis VTC-2500 2743 MM CNC Vertical Boring Mill w/Ram & Side Head
Model:
VTC-2500
Age:
1990
Ref#:
43973
Prestige Equipment is the world's leading provider of Giddings & Lewis VTC-2500 2743 MM CNC Vertical Boring Mill w/Ram & Side Head & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓
Giddings & Lewis 8004-B CNC Control
✓
30-Station Automatic Tool Changer
✓
Vertical Ram Head
✓

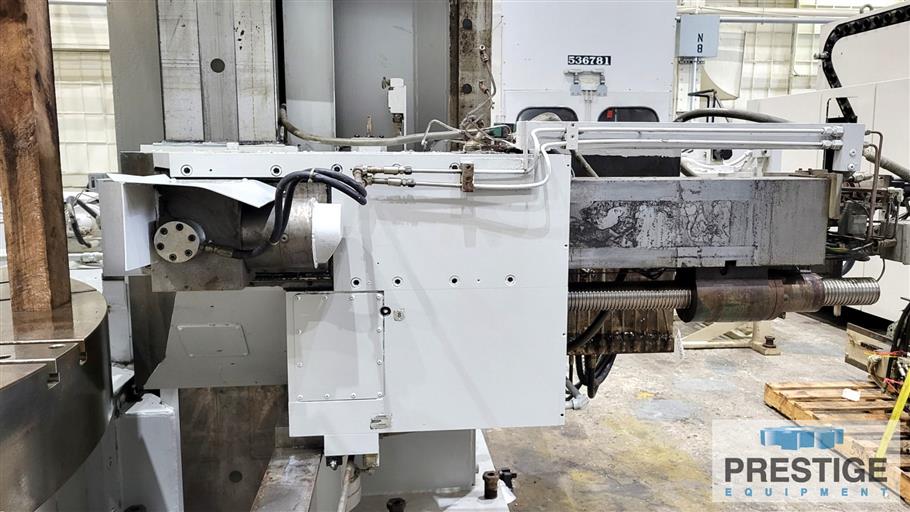

Right Hand Side Head
✓
250,000 Lb Table Weight Capacity
Product Specifications
SPECIFICATIONS:

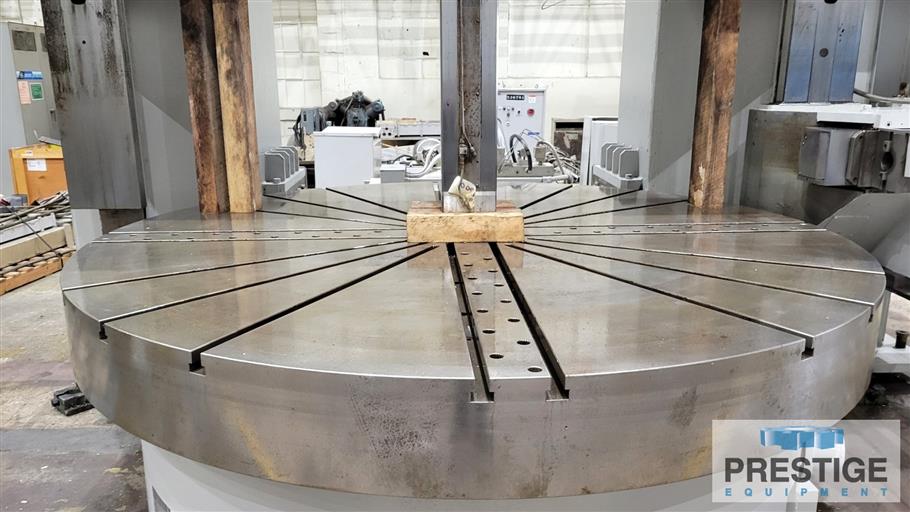

Table Diameter, T-Slotted
2743 MM
Maximum Swing
3048 MM
Maximum Height Under Cross Rail
2134 MM
Ram Stroke, 305 MM Extended Travel
1575 MM
Ram Taper
#60 ANSI
Ram Cross Section
200 MM x 200 MM
Side Head Horizontal Ram Travel
813 MM
Side Head Ram Taper
#50 ANSI
Side Head Ram Cross Section
184 MM x 216 MM
Table Speeds, 2-Ranges
2.5-150 RPM
Table Drive Motor
75 KW
Table Load Capacity At Maximum RPM
113398 KG
Rapid Traverse Rate
3810 MM/MIN
Feed Range
3813 MM/MIN

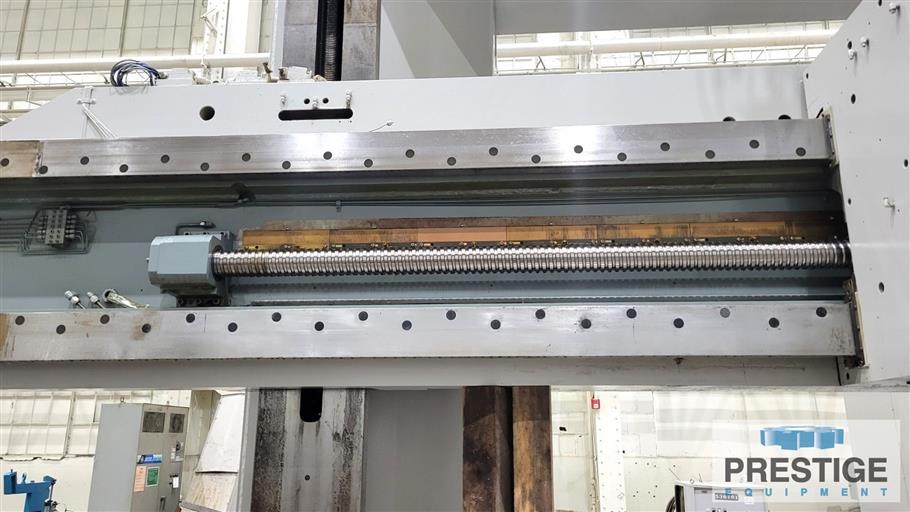

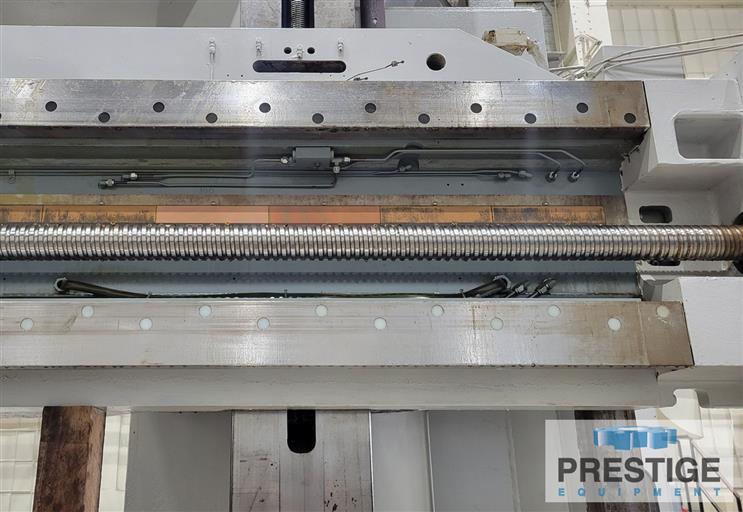

Ball Screw Diameter
76 MM
Positioning Uni-Direction Accuracy
+/-0 MM In 914 MM
Positioning Uni-Direction Repeatability +/-0 MM
Approximate Machine Weight
68039 KG
Equipped With:

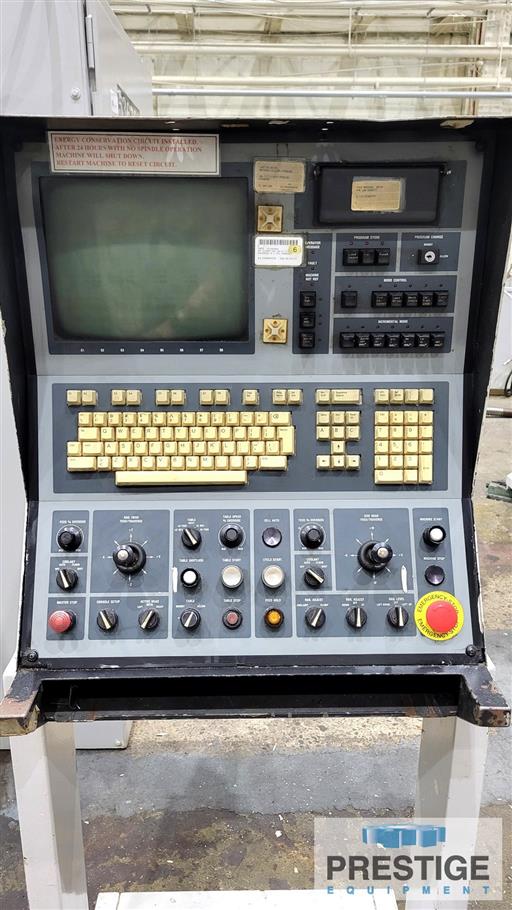

Giddings & Lewis 8004B 4-Axis CNC Control
Pedestal Mounted Operators Station
30 Station ATC, Right Hand For Vertical Ram
12 Station ATC, Right Hand for Side Head
Rams Built with Steel Forged Material
Hardened Ways
Inductosyn Feedback System
Thread Cutting
Programable Rail Travel
Rail Leveling Device
Kennemetal Tool Condition Sensor
Numeriprobe Part Probe System
Numeriprobe Tool Probe System
Cross Rail Power Elevation and Clamping
Way Covers on Cross Rail
High Volume Flood Coolant
Coolant Thru Center of Ram
Temperature Controlled Coolant System
Hardened Ways
Chip Conveyor, 457 MM Wide with 1372 MM Discharge Ht.
75 KW Table Drive 460/3/60 Cycle
NOTES:
Rare Opportunity to Purchase Legacy Machine
Features:
✓
Giddings & Lewis 8004-B CNC Control
✓
30-Station Automatic Tool Changer
✓
Vertical Ram Head
✓
Right Hand Side Head
✓
250,000 Lb Table Weight Capacity
