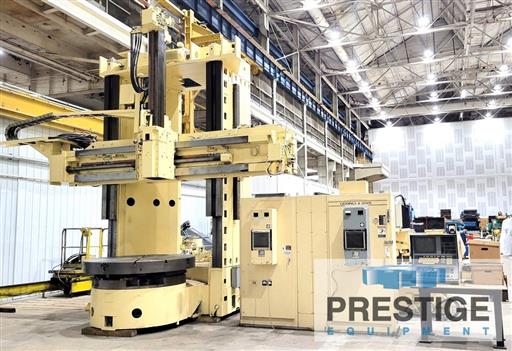

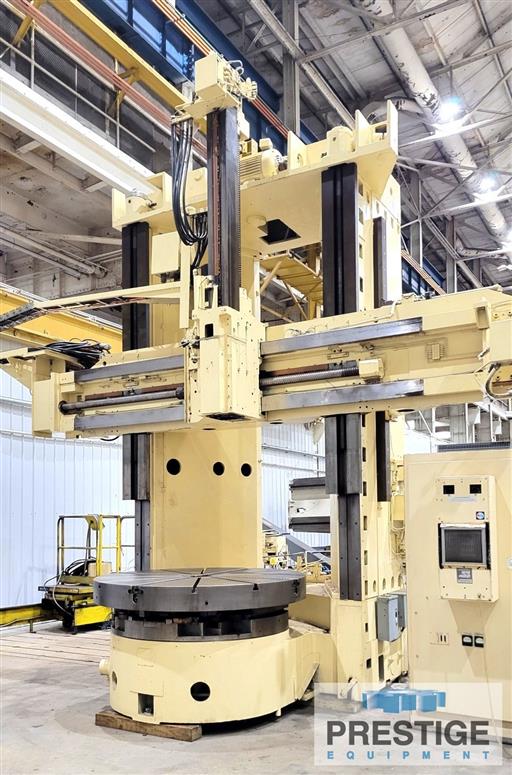

Giddings & Lewis 1829 MM High Column CNC Vertical Boring Mill w/Pallet Shuttle

Model:
Series 514
Age:
1998
Ref#:
30175
View Video
Prestige Equipment is the world's leading provider of Giddings & Lewis 1829 MM High Column CNC Vertical Boring Mill w/Pallet Shuttle & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
High Column Option 2438 MM Under Cross Rail
Ram W/ 12 Station Automatic Tool Changer
G & L 8000 CNC Control
2-Pallet Shuttle System
Product Specifications
Serial Number
514-0046-98
SPECIFICATIONS:

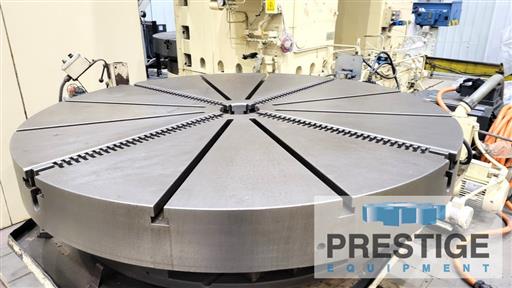

Table Diameter
1829 MM
Maximum Turning Diameter
2134 MM
Maximum Height Under Cross Rail
2438 MM
Ram Vertical Travel, X-Axis
1575 MM
Vertical Travel of Cross Rail
1372 MM
Ram Travel, Left of Center
1384 MM
Ram Travel, Right of Center
1232 MM
Ram Cross Section
200 MM
Table Speeds, Inf. Variable
2 Ranges
Table Speeds, High Range
9 to 200 RPM
Table Speeds, Low Range
2-50 RPM
Rapid Traverse, Rail Head X & Z Axis
10160 MM/MIN
Feed Rates, Variable X & Z Axes
.01 to 3810 MM/MIN
Rail Elevating Rate
762 MM/MIN
Equipped With:

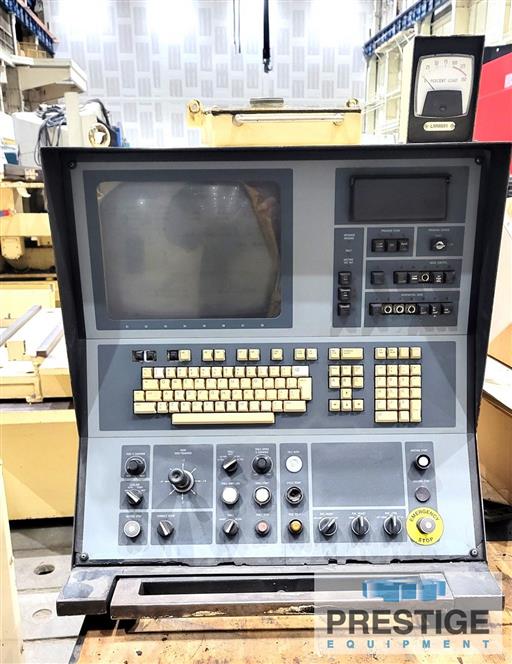

Giddings & Lewis 8000 CNC Control

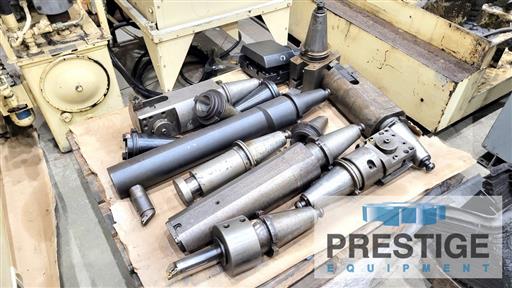

12-Station Automatic Tool Changer

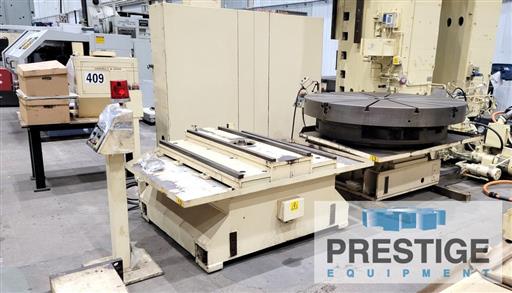

(2) 1829 MM 4-Jaw Independent Manual Chucks with Pallet Shuttle
Power Draw Bar Ram w/#60 ANSI B5.50 Taper
Elevating Cross Rail
Extended Column Height
Flood Coolant System
Adjustable Cross Rail With Power Elevation and Clamping
Hardened Ways on Cross Rail
Independent AC Electric Servo Feed Drives
76 MM Diameter Ball Screws
Inductosyn Scale Feedback
Programmable Rail Height Adjustment
Automatic Rail Leveling
Numeriprobe In Process Gauging
Numeridapt Adaptive Control
Tool Tip Probing
Chip Conveyor with Elevator
56 KW Main Motor
Features:
High Column Option 2438 MM Under Cross Rail
Ram W/ 12 Station Automatic Tool Changer
G & L 8000 CNC Control
2-Pallet Shuttle System
