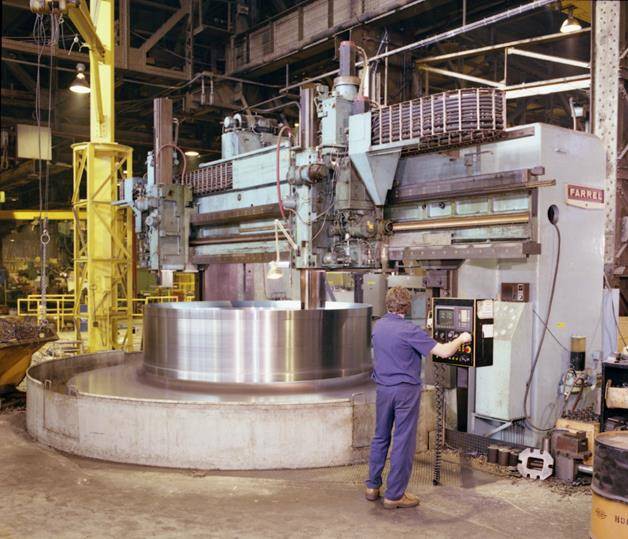

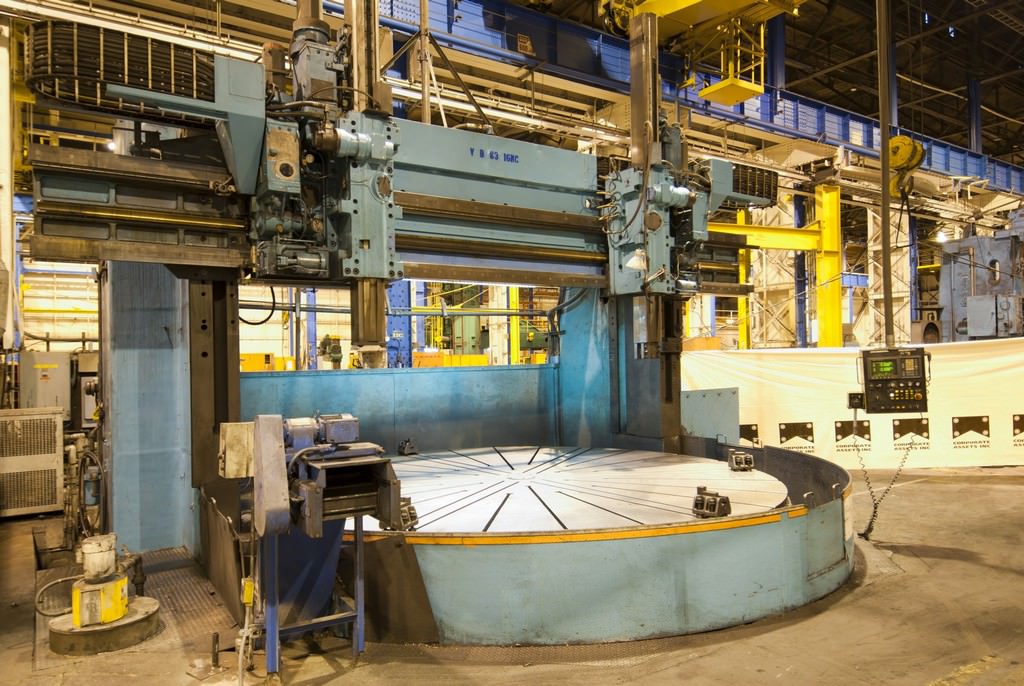

Farrel 4877 MM CNC Vertical Boring Mill w/ 2-Rams , Rebuilt 2010

Model:
Double Column
Retrofit:
2010
Ref#:
27803
Prestige Equipment is the world's leading provider of Farrel 4877 MM CNC Vertical Boring Mill w/ 2-Rams , Rebuilt 2010 & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
Rebuilt & Retrofitted 2010 With GE Fanuc O-M CNC Control
Extended Ram Travel
2-Vertical Rams
125 Ton Table Capacity
Flush Floor, No Pit Required
Product Specifications
SPECIFICATIONS:

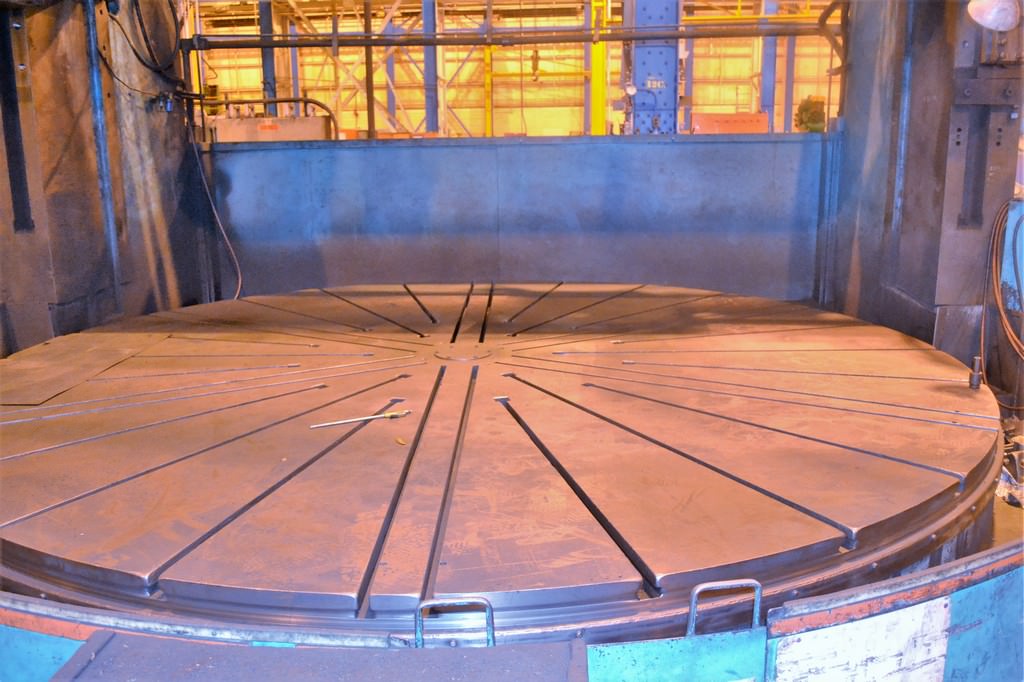

Table Diameter
4877 MM
Maximum Swing
5131 MM
Maximum Height Under Rail
2794 MM
Maximum Height Under Tool
2616 MM
Ram Stroke
2438 MM

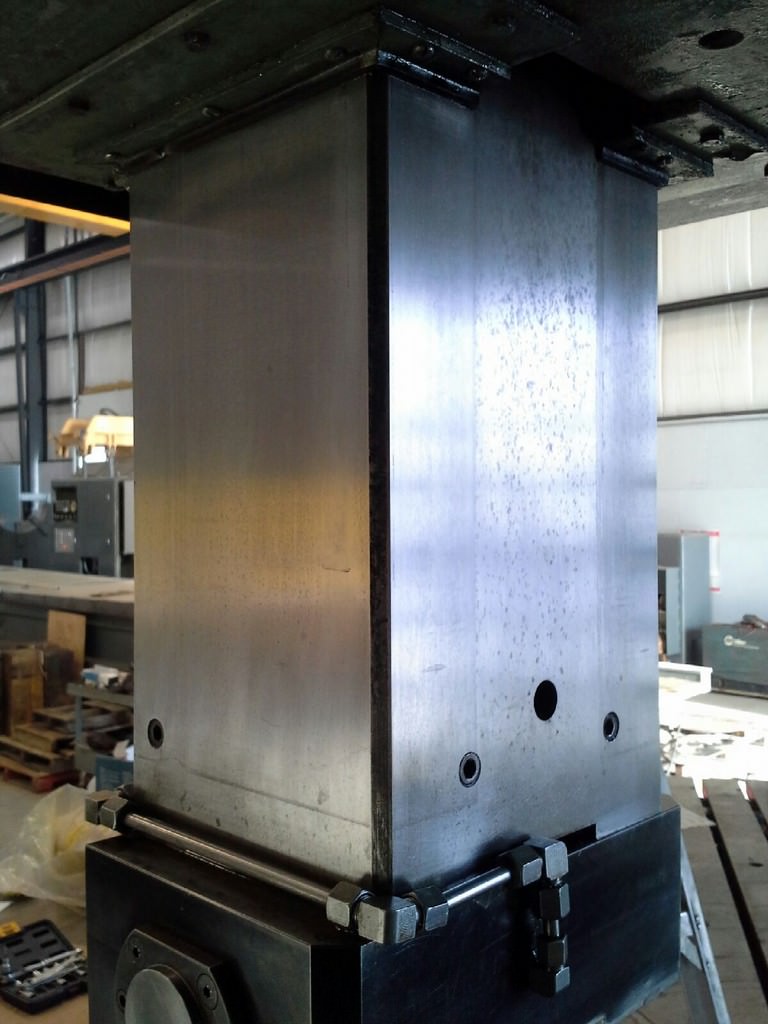

Ram Cross Section
241 MM x 254 MM
Feed Rate
10009 MM/MIN
Feed Rate Per Rotation
0 MM -500 MM
Rapid Traverse Rate
4000 MM/MIN
Table Speeds
.5-35 RPM
Ram Tooling
Sandvik C-6
Table Weight Capacity
125 Ton
Main Motor
75 KW
Equipped With:

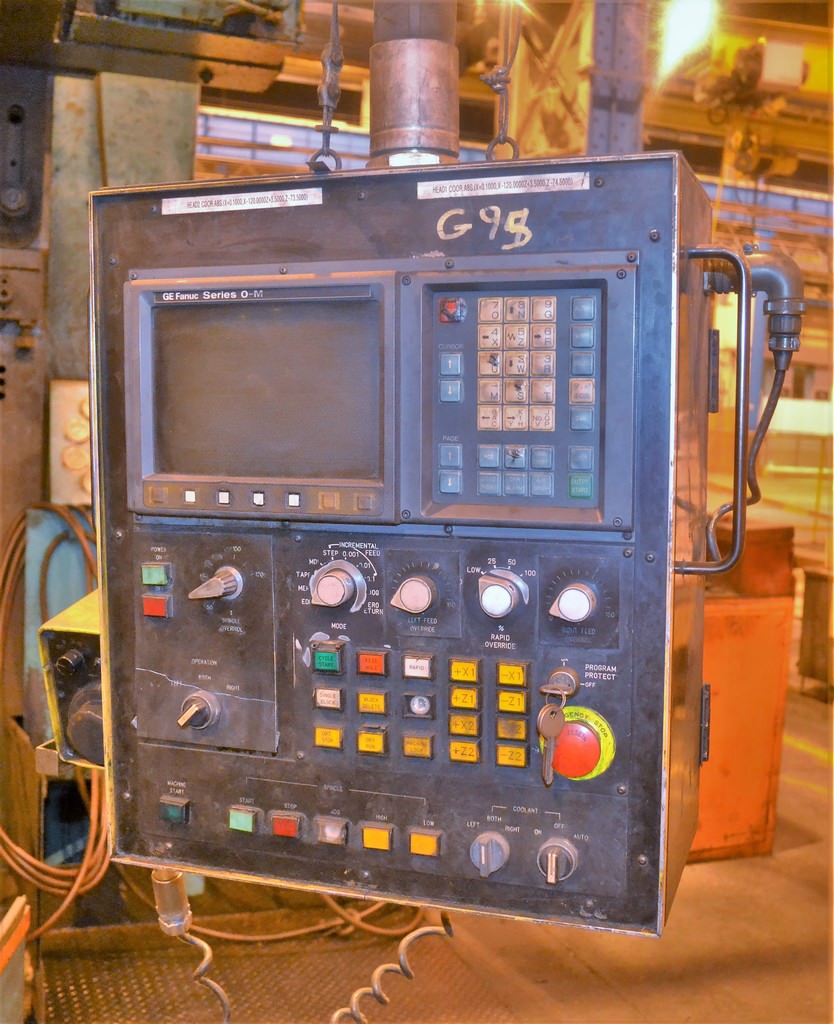

GE Fanuc O-M CNC Control, New 2010

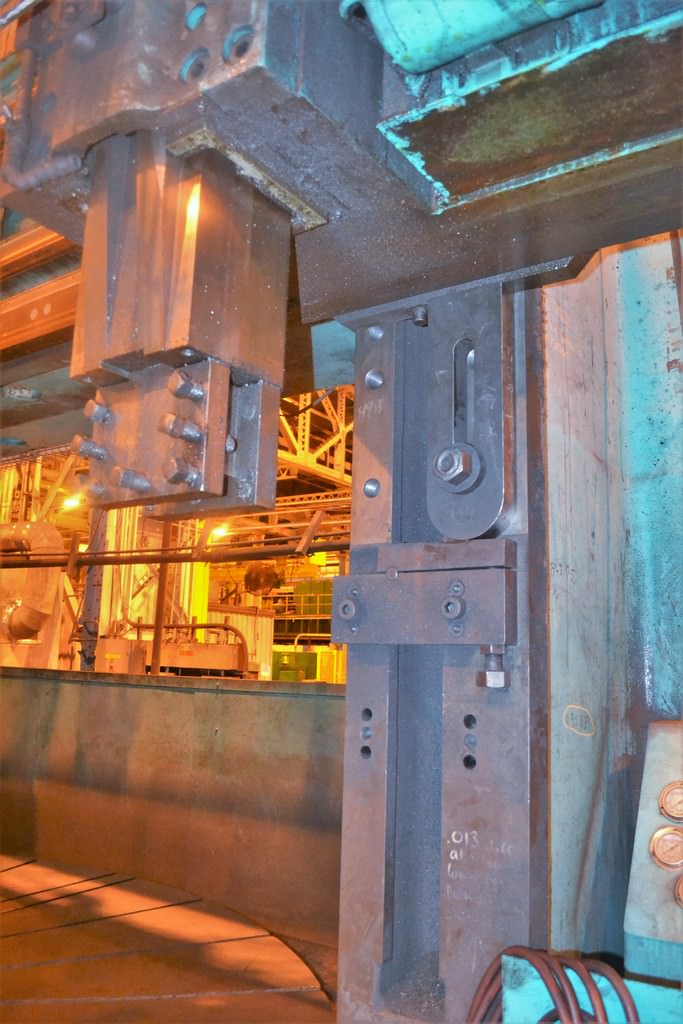

2-Vertical Ram Heads
Extended Ram Travels

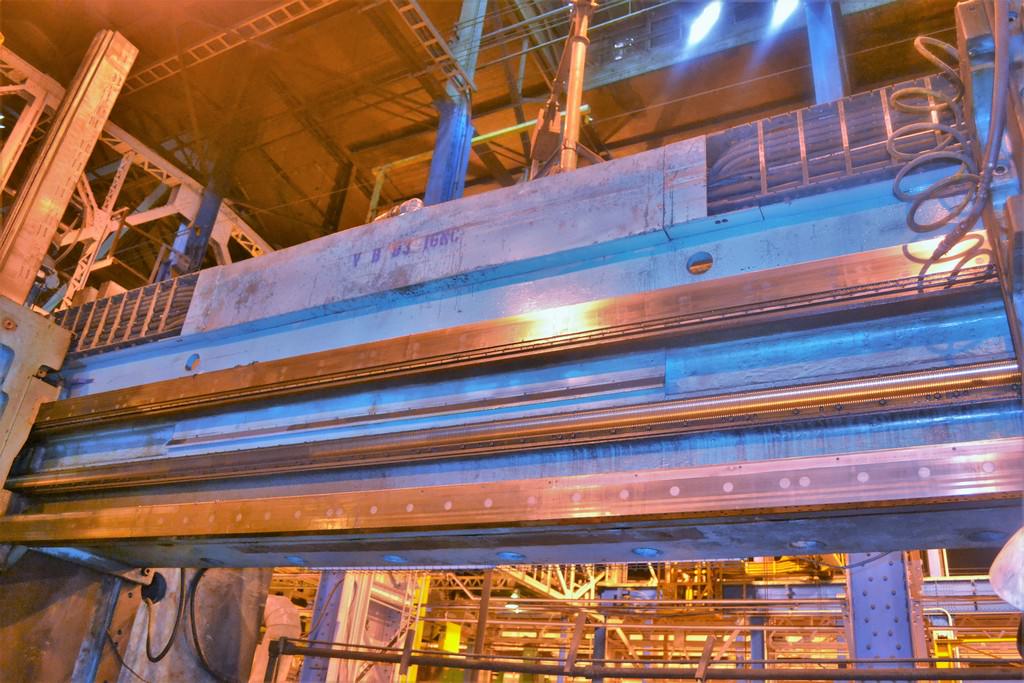

Adjustable Fixed Cross Rail

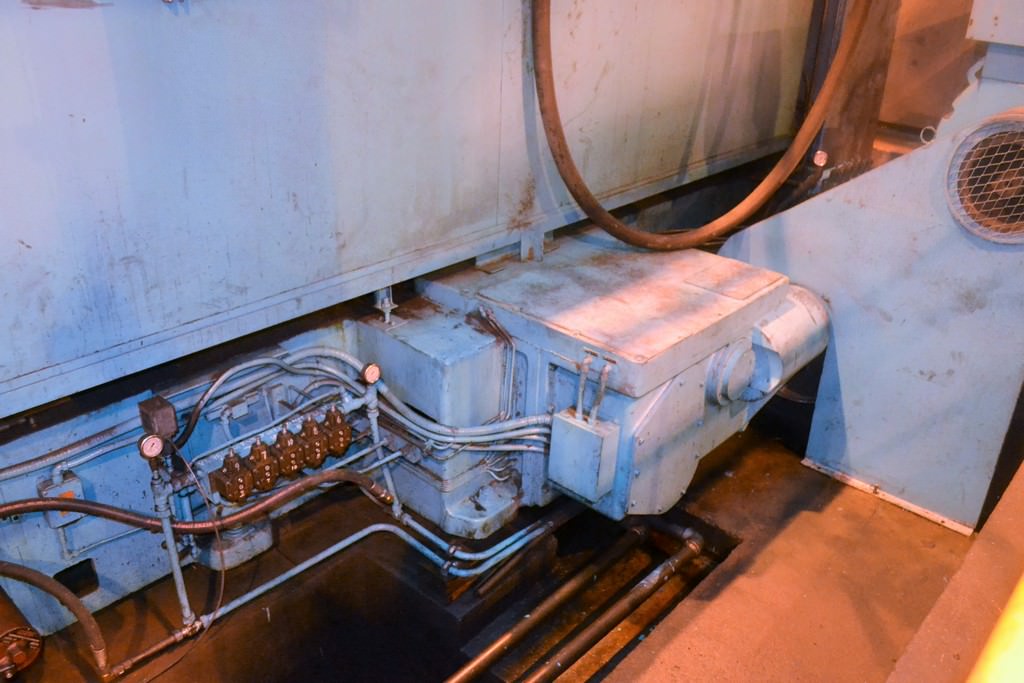

Hydrostatic Table Bearings, Rebuilt 2010
Hardened & Ground Ways
Flood Coolant

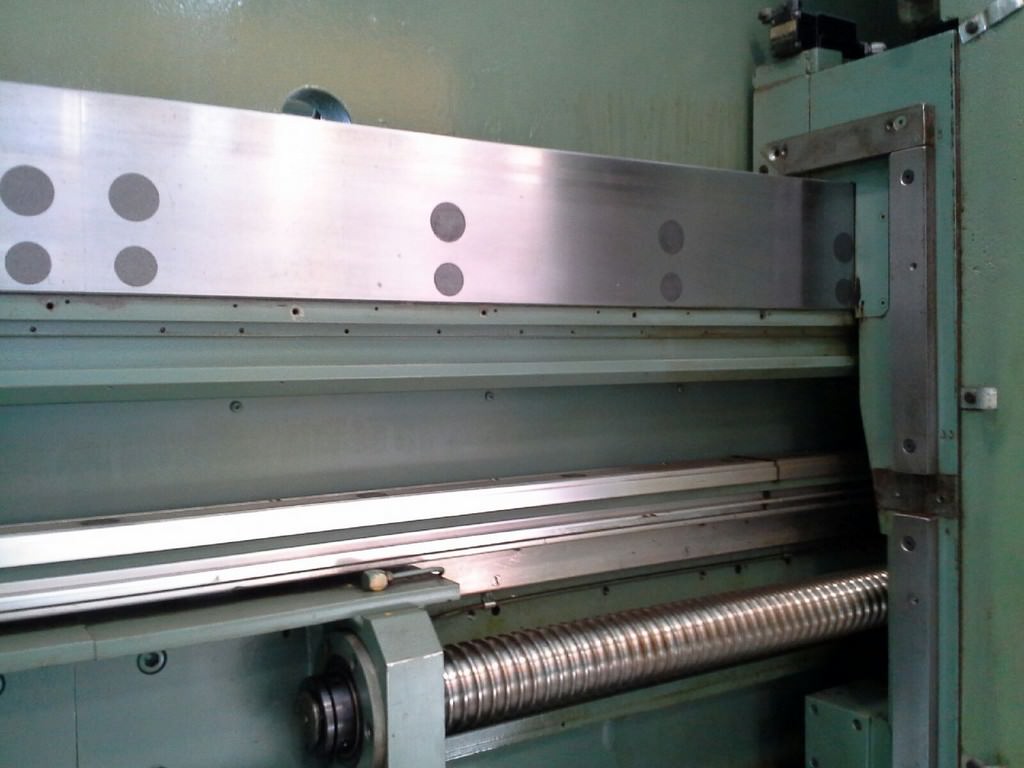

Bellow Type Way Covers on Cross Rail
Chip Conveyor
75 KW Main Motor
NOTES:
Rebuilt & Retrofitted With New CNC Controls in 2010.
Flush Mount Machine does not require a pit.
Features:
Rebuilt & Retrofitted 2010 With GE Fanuc O-M CNC Control
Extended Ram Travel
2-Vertical Rams
125 Ton Table Capacity
Flush Floor, No Pit Required
