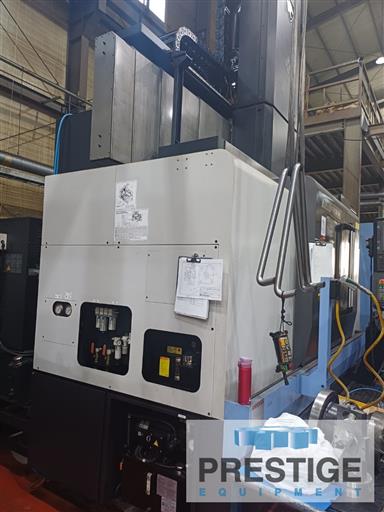

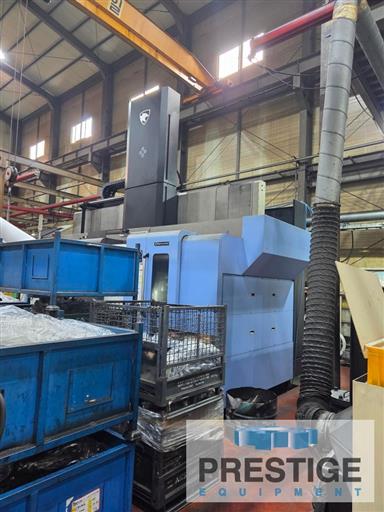

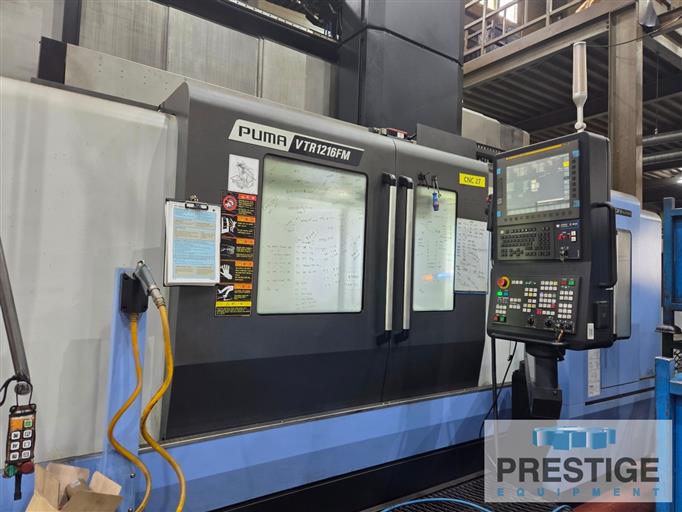

DN Solutions (Doosan) VTR1216FM CNC Vertical Boring Mill w/ Milling
Model:
VTR 1216FM
Age:
2022
Ref#:
45068
Prestige Equipment is the world's leading provider of DN Solutions (Doosan) VTR1216FM CNC Vertical Boring Mill w/ Milling & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓

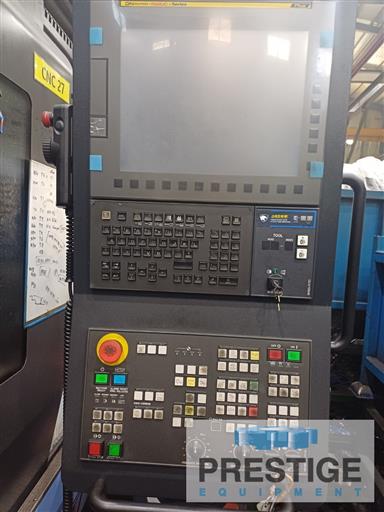

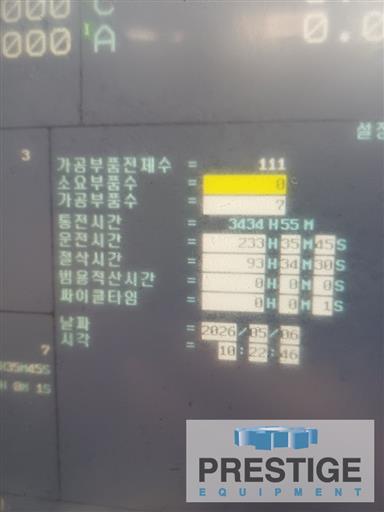

Fanuc i Series CNC Control
✓
Ram W/ Live Milling Spindle
✓
C-Axis Table for Milling & Drilling Operations
✓

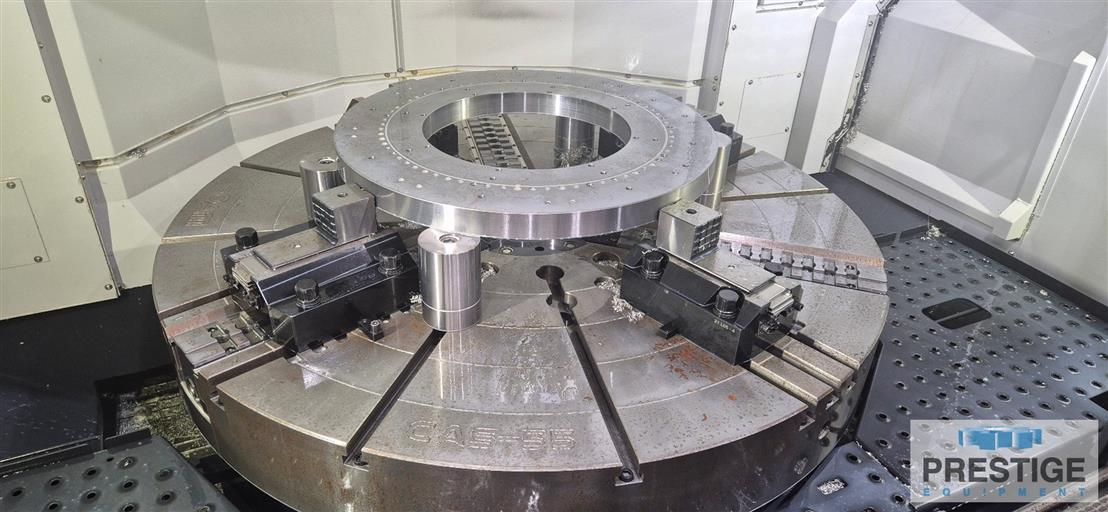

55" Combination Chuck (Hydraulic & Manual)
✓

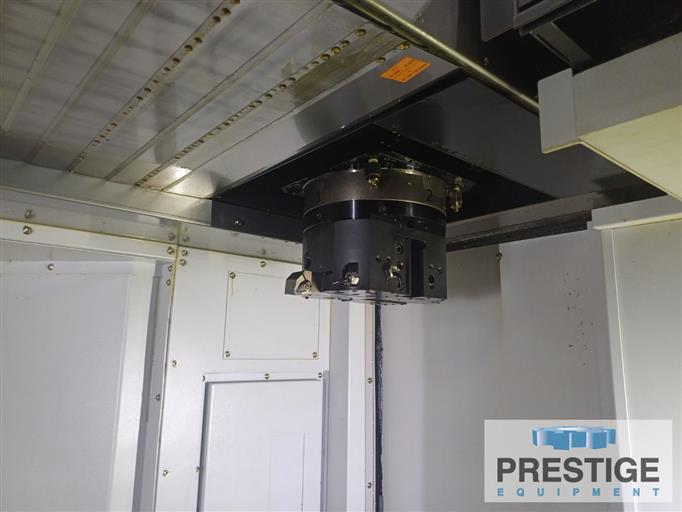

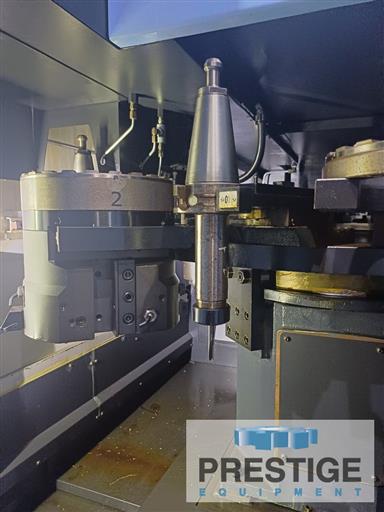

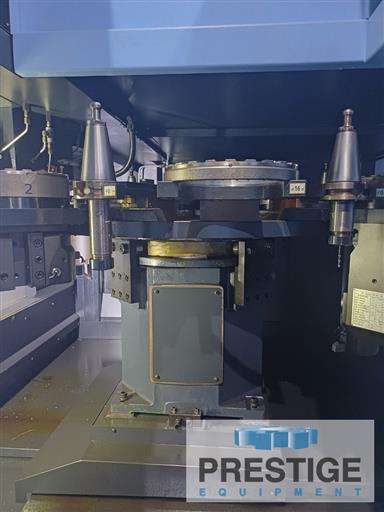

15-Station Automatic Tool Changer
✓

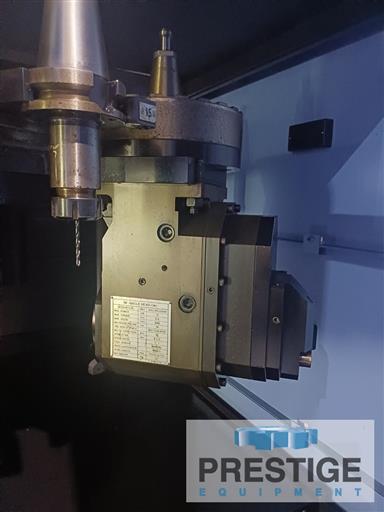

90 Degree Angle Head
✓
Coolant Thru Spindle
✓
Chip Conveyor
Product Specifications
CAPACITY:
Table Diameter
55"
Maximum Cutting Diameter
62.99"
Maximum Cutting Height
37.40"
Ram Stroke (Z-Axis)
35.43"
Ram Cross Section
10.23" x 10.23"
Rail Travel (X-Axis)
66.92"
Table Speeds
1-400 RPM
Table Capacity
17,600 Lbs.
Table Indexing
0.001 Deg.
Table Motor
49.6 HP / 60.3 HP
Milling Spindle Speeds
1-3000 RPM
Milling Spindle Taper
BT 50
Milling Spindle Motor
14.6 HP / 20.1 HP
Approximate Dimensions
220" x 199" x 160"
Approximate Weight
61,729 Lbs.
Equipped With:
Fanuc i Series CNC Control
Ram W/ Live Milling Spindle
C-Axis Table for Milling & Drilling Operations
55" Combination Chuck (Hydraulic & Manual)
15-Station Automatic Tool Changer
90 Degree Angle Head
Coolant Thru Spindle
Chip Conveyor
Features:
✓
Fanuc i Series CNC Control
✓
Ram W/ Live Milling Spindle
✓
C-Axis Table for Milling & Drilling Operations
✓
55" Combination Chuck (Hydraulic & Manual)
✓
15-Station Automatic Tool Changer
✓
90 Degree Angle Head
✓
Coolant Thru Spindle
✓
Chip Conveyor
