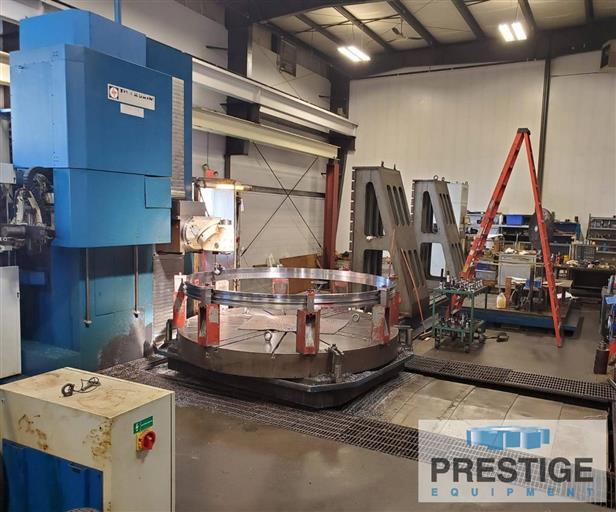

TOS FUQ 150 VR/11 CNC Floor Type Horizontal Boring Mill
Model:
FUQ 150 VR/11
Age:
2007
Ref#:
44596
Prestige Equipment is the world's leading provider of TOS FUQ 150 VR/11 CNC Floor Type Horizontal Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Floor Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓

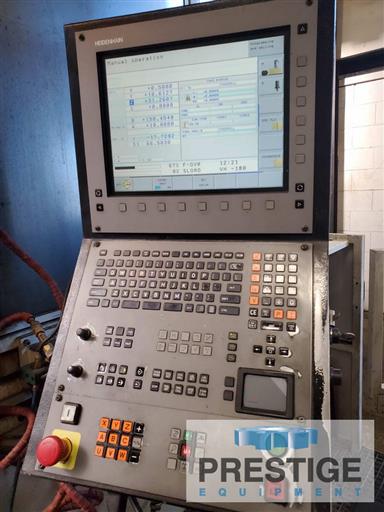

Heidenhain iTNC 530 CNC Control
✓
40-Station Automictic Tool Changer
✓
3-Station Automatic Head Changer
✓
2000 MM x 2500 MM In-feeding CNC Rotary Tables
✓
(1) 1885 MM x 6400 MM T-Slotted Floor Plate
✓
(1) 2000 MM x 2000 MM T-Slotted Floor Plate
✓
TOS CNC Sweep Head, Model VK
✓
TOS CNC Universal Head, Model VO
✓
TOS CNC Straight Head, Model VA1
✓
Through Spindle Coolant
✓
Chip Conveyor
Product Specifications
CAPACITY:
Spindle Diameter
150 MM
Spindle Taper
#50 CAT
Vertical Travel of Head, Y-Axis
2500 MM
Column Travel, X-Axis
9000 MM
Ram Travel, Z-Axis
1500 MM
Spindle Speeds
20-4,000 RPM
Spindle Motor
30 KW (30 KW)

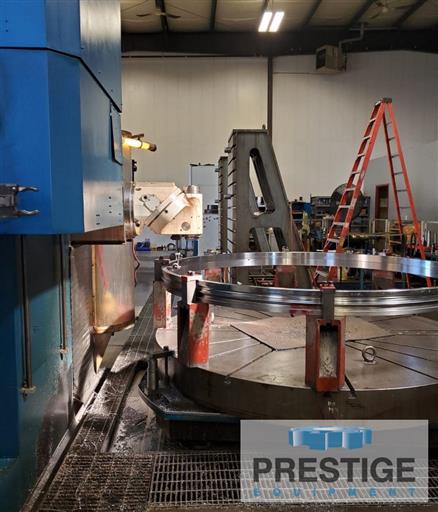

TOS IN-FEEDING (B-Axis) CNC ROTARY TABLE:
Table Size
2000 MM x 2500 MM
Table Infeed, V-Axis
2250 MM
Table Rotation
.001
Table Weight Capacity
19958 KG
Floor Space:
Machine Footprint
19010 MM x 10552 MM
Machine Height
5737 MM
Main Machine Weight
41912 KG
TOS CNC Sweep Head:
Swivel
210 Degrees
Reach
435 MM
Speed
20-4,000 RPM
Taper
#50 CAT
Max Torque
1,000 RPM
TOS CNC Universal Head:
Reach, Horz. Pos.
550 MM
Reach, Vert. Pos.
525 MM
Speed
20-4,000 RPM
Taper
#50 CAT
Max Torque
1250 Nm
TOS CNC Straight Head:
Reach
400 MM
Speed
20-4,000 RPM
Taper
#50 CAT
Max Torque
2000 Nm
Equipped With:
Heidenhain iTNC 530 CNC Control
40-Station Automatic Tool Changer
3-Station Automatic Head Changer
2000 MM x 2500 MM In-feeding CNC Rotary Tables w/ 2250 MM Infeed
(1) 1885 MM x 6400 MM T-Slotted Floor Plate
(1) 2000 MM x 2000 MM T-Slotted Floor Plate
TOS CNC Sweep Head, Model VK
TOS CNC Universal Head, Model VO
TOS CNC Straight Head, Model VA1
Through Spindle Coolant
3D Touch Probe for Measuring & Positioning the Work Piece
Tool Monitoring Device
Remote Control Diagnostics
Chip Conveyor
Note:
Inspect In Plant Under Power!
Features:
✓
Heidenhain iTNC 530 CNC Control
✓
40-Station Automictic Tool Changer
✓
3-Station Automatic Head Changer
✓
2000 MM x 2500 MM In-feeding CNC Rotary Tables
✓
(1) 1885 MM x 6400 MM T-Slotted Floor Plate
✓
(1) 2000 MM x 2000 MM T-Slotted Floor Plate
✓
TOS CNC Sweep Head, Model VK
✓
TOS CNC Universal Head, Model VO
✓
TOS CNC Straight Head, Model VA1
✓
Through Spindle Coolant
✓
Chip Conveyor
