Worldwide Industrial Auctions & Liquidations
Online Auction
(5) Late Model Doosan CNC Vertical Turning Centers
DOOSAN (2012) PUMA VTS1214 CNC VTCs w/ FANUC Series 31i-Model A CNC, 55.11" swing over bed; 29.52" swing over cross rail; 53.14" max turning diameter; 32.04" max turning height; travels X-57.08", Z-31.49", W-23.62" (5.90" x 4 steps); rapid traverse X-472.44 inch/min, Z-472.44 inch/min; 8800 lbs max table capacity; speeds to 83-250 RPM low gear, 329-630 RPM high gear; 80/75/60 HP 10min/30min/continuous main spindle drive; 3.93" spindle bore; 15 station ATC; RUSACH (2012) 8-10 D1250 integrated twin pallet APC with (2) 49.21" diameter pallets, automatic doors, light curtain safety interlocks; RENISHAW probe system
March 7, 2018
11:00AM EST
North Carolina
Enter Auction View Brochure Share Print
Contact for Sale
Paul Lashin
Email Me
631-249-5566
Inspection Date
TBA
In Conjunction With
Prestige Auctions
Featured Assets

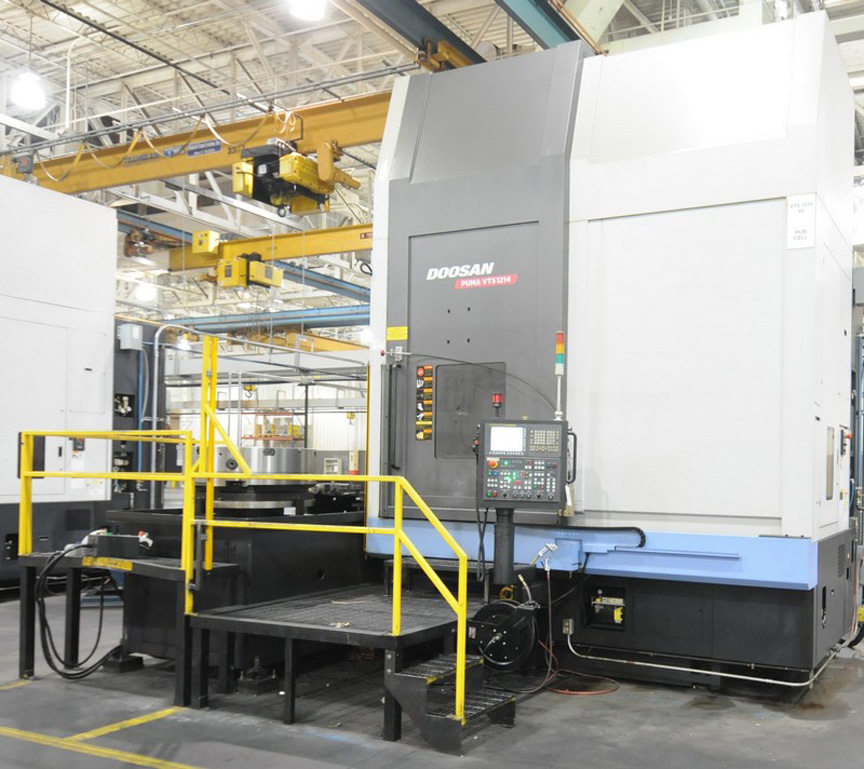

DOOSAN (2012) PUMA VTS1214 CNC vertical turning center with FANUC Series 31i-Model A CNC control; 55.11″ swing over bed; 29.52″ swing over cross rail; 53.14″ max turning diameter; 32.04″ max turning height; travels X-57.08″, Z-31.49″, W-23.62″ (5.90″ x 4 steps); rapid traverse X-472.44 inch/min, Z-472.44 inch/min; 8800 lbs max table capacity; speeds to 83-250 RPM low gear, 329-630 RPM high gear; 80/75/60 HP 10min/30min/continuous main spindle drive; 3.93″ spindle bore; 15 station ATC; RUSACH (2012) 8-10 D1250 integrated twin pallet APC with (2) 49.21″ diameter pallets, automatic doors, light curtain safety interlocks; RENISHAW probe system; shower and high pressure through spindle coolant; oil skimmer; mist collector; hinged belt type chip conveyor with rear discharge; transformer; 220V/60Hz/3PH; 3407 cutting hrs recorded on hour meter at the time of listing; s/n VT125-0024 VIEW VIDEO

DOOSAN (2012) PUMA VTS1214 CNC vertical turning center with FANUC Series 31i-Model A CNC control; 55.11″ swing over bed; 29.52″ swing over cross rail; 53.14″ max turning diameter; 32.04″ max turning height; travels X-57.08″, Z-31.49″, W-23.62″ (5.90″ x 4 steps); rapid traverse X-472.44 inch/min, Z-472.44 inch/min; 8800 lbs max table capacity; speeds to 83-250 RPM low gear, 329-630 RPM high gear; 80/75/60 HP 10min/30min/continuous main spindle drive; 3.93″ spindle bore; 15 station ATC; RUSACH (2012) 8-10 D1250 integrated twin pallet APC with (2) 49.21″ diameter pallets, automatic doors, light curtain safety interlocks; RENISHAW probe system; shower and high pressure through spindle coolant; oil skimmer; mist collector; hinged belt type chip conveyor with rear discharge; transformer; 220V/60Hz/3PH; 3298 cutting hrs recorded on hour meter at the time of listing; s/n MT0039-000026 VIEW VIDEO

DOOSAN (2012) PUMA VTS1214 CNC vertical turning center with FANUC Series 31i-Model A CNC control; 55.11″ swing over bed; 29.52″ swing over cross rail; 53.14″ max turning diameter; 32.04″ max turning height; travels X-57.08″, Z-31.49″, W-23.62″ (5.90″ x 4 steps); rapid traverse X-472.44 inch/min, Z-472.44 inch/min; 8800 lbs max table capacity; speeds to 83-250 RPM low gear, 329-630 RPM high gear; 80/75/60 HP 10min/30min/continuous main spindle drive; 3.93″ spindle bore; 15 station ATC; RUSACH (2012) 8-10 D1250 integrated twin pallet APC with (2) 49.21″ diameter pallets, automatic doors, light curtain safety interlocks; RENISHAW probe system; shower and high pressure through spindle coolant; oil skimmer; mist collector; hinged belt type chip conveyor with rear discharge; transformer; 220V/60Hz/3PH; 2194 cutting hrs recorded on hour meter at the time of listing; s/n MT0039-000028 VIEW VIDEO

DOOSAN (2012) PUMA VTS1214 CNC vertical turning center with FANUC Series 31i-Model A CNC control; 55.11″ swing over bed; 29.52″ swing over cross rail; 53.14″ max turning diameter; 32.04″ max turning height; travels X-57.08″, Z-31.49″, W-23.62″ (5.90″ x 4 steps); rapid traverse X-472.44 inch/min, Z-472.44 inch/min; 8800 lbs max table capacity; speeds to 83-250 RPM low gear, 329-630 RPM high gear; 80/75/60 HP 10min/30min/continuous main spindle drive; 3.93″ spindle bore; 15 station ATC; RUSACH (2012) 8-10 D1250 integrated twin pallet APC with (2) 49.21″ diameter pallets, automatic doors, light curtain safety interlocks; RENISHAW probe system; shower and high pressure through spindle coolant; oil skimmer; mist collector; hinged belt type chip conveyor with rear discharge; transformer; 220V/60Hz/3PH; 4381 cutting hrs recorded on hour meter at the time of listing; s/n MT0039-000030

DOOSAN (2012) PUMA VTS1214 CNC vertical turning center with FANUC Series 31i-Model A CNC control; 55.11″ swing over bed; 29.52″ swing over cross rail; 53.14″ max turning diameter; 32.04″ max turning height; travels X-57.08″, Z-31.49″, W-23.62″ (5.90″ x 4 steps); rapid traverse X-472.44 inch/min, Z-472.44 inch/min; 8800 lbs max table capacity; speeds to 83-250 RPM low gear, 329-630 RPM high gear; 80/75/60 HP 10min/30min/continuous main spindle drive; 3.93″ spindle bore; 15 station ATC; RUSACH (2012) 8-10 D1250 integrated twin pallet APC with (2) 49.21″ diameter pallets, automatic doors, light curtain safety interlocks; RENISHAW probe system; shower and high pressure through spindle coolant; oil skimmer; mist collector; hinged belt type chip conveyor with rear discharge; transformer; 220V/60Hz/3PH; 4381 cutting hrs recorded on hour meter at the time of listing; s/n MT0039-000031 VIEW VIDEO

Auction Date/Time
3/7/18 11:00 am ET
Days
Hours
Minutes
Seconds
Enter Auction View Brochure Share Print
