Worldwide Industrial Auctions & Liquidations
Onsite & Online Auction
Complete Boring, Honing & Turning Facility, Support, Tooling & More!
(7) Wohlenberg Counter-Rotating CNC Deep Hole Boring Machines, TBT CNC Boring and Gundrilling Machine, (5) Barnes Horizontal Honing Machines, General GH-210 Horizontal Honing Machine, (2) Savage Straightening Presses (up to 1000T), (3) Wohlenberg Hollow Spindle Engine Lathes and MUCH MORE!
June 27, 2017
10:00AM CDT
Richardson, TX
View Brochure Share Print
Contact for Sale
Adam Herman
Email Me
631-249-5566
Inspection Date
By Appointment
In Conjunction With
Prestige Auctions
Featured Assets

COUNTER ROTATING DEEP HOLE BORING MACHINES

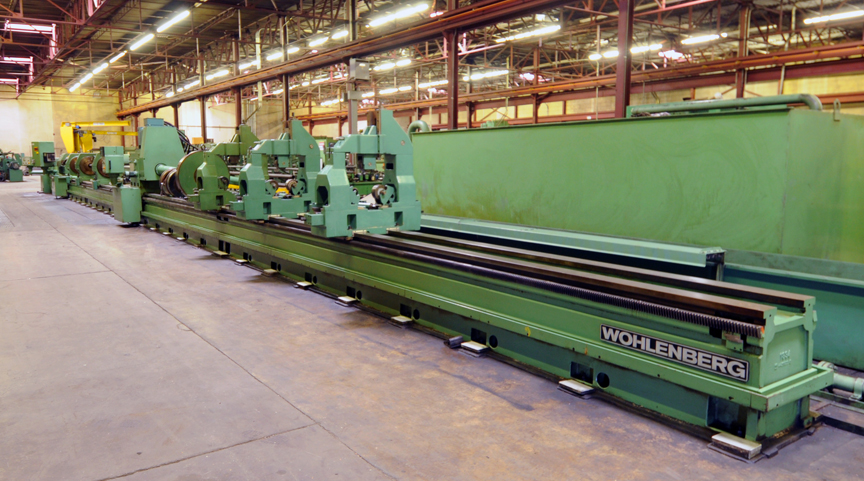

  • (4) WOHLENBERG MDL. PB2-1000 X 11M, as new as 1998, 39.37” swing over bed, 433” (11 M) max. boring depth, 7.87” solid boring cap, 22,000 lb. max. workpiece weight, 13.93” counterboring cap., 1.19-196 IPM boring speeds, 2.9-1120 RPM main spdl. speeds, 4.09” spdl. bore, 100 HP main spdl. drive, 100 HP boring spdl. drive, double rack drive carriage, Fanuc “powermate” or 0-T PLC, (3) damper rests w/ med. dampers, med. size pressure head, 20” 3-jaw universal chuck, (3) H.D. steady rests, chip conveyor, 50 HP vert. coolant pump, coolant chiller unit, Polo Mdl. SAFI-T1.7 pressure filter unit w/paper filter or American Heller cartridge filter, S/N 4538 (1998), S/N D4516 (1995), S/N 4436 (1988), S/N 4293 (1983)
  • WOHLENBERG MDL. PB2-1000 X 10M, new 1991,37” swing over bed, 393” (10 M) max. boring depth, 7.87” solid boring cap, 22,000 lb. max. workpiece weight, 13.93” counterboring cap., 1.19-196 IPM boring speeds, 2.9-1120 RPM main spdl. speeds, 4.09” spdl. bore, 24 ½” 3-jaw universal chuck, 100 HP main spdl. drive, 100 HP boring spdl. drive, double rack drive carriage, Fanuc Powermate PLC, (3) damper rests w/med. dampers, med. size pressure head, chip conveyor, (3) H.D. steady rests, Koolant Koolers Mdl. AFD25000P-ST coolant chiller system, fabricated coolant tank, (2) 50 HP coolant pumps, Polo Mdl. SAFI-T1.7 pressure filter unit w/paper filter, S/N 4466.
  • (2) WOHLENBERG MDL. PB2-1000 X 4M, new 2006, 39.37” swing over bed, 157” (4 M) max. boring depth, 7.87” solid boring cap, 17,6000 lb. max. workpiece weight, 13.93” counterboring cap., 1.19-196 IPM boring speeds, 2.9-1120 RPM main spdl. speeds, 4.09” spdl. bore, 24 ½” 3-jaw universal chuck, 100 HP main spdl. drive, 100 HP boring spdl. drive, double rack drive carriage, Fanuc 21iTB CNC, (2) damper rests w/med. dampers, med. size pressure head, chip conveyor, (2) H.D. steady rests, Koolant Koolers Mdl. AFD25000P-ST coolant chiller system, fabricated coolant tank, (2) 50 HP coolant pumps, Polo Mdl. SAFI-T1.7 pressure filter unit w/paper filter, S/N D4583, S/N D4582.

WOHLENBERG ACCESSORIES

  • SMALL & LARGE PRESSURE HEADS, STUFFING BOXES, FLANGE RINGS, SMALL & LARGE SIZE DAMPER SETS, HUGE ASSORTMENT OF PHENOLIC DAMPER BUSHINGS, BORING BAR ADAPTERS, SPARE STEADY RESTS, LANTERN CHUCKS & CHIP SHROUDS, 35.5” 4-JAW CHUCKS, HYD, SKIVING RESTS, FIXTURE TABLES,

WOHLENBERG BORING BARS

  • DOZENS OF BORING BARS FOR THE ABOVE MACHINES FROM BAR #11 TO #29, IN LENGTHS FROM 19.5’ TO 48’ WITH RELATED BAR STORAGE RACKS AND LIFTING BEAMS

BORING TOOLING

  • HUGE SELECTION OF BORING HEADS AND TOOLING INCLUDING BTA CUTTER HEADS, COUNTERBORING HEADS, BOTTOMING HEADS, PULL BORING HEADS, REAMING TOOLS, & TREPANNING TOOLS IN VARIOUS SIZES UP TO 14” DIA.

ROLLER BURNISHING HEADS

  • WIDE RANGE OF ROLLER BURNISHING HEADS, approx. 30 ranging from 2” to 5 ½” cap. In size sorted in rack.

CNC COUNTER ROTATING DEEP HOLE BORING MACHINE

  • TIEFBOHRTECHNIK (TBT) MDL. 630-1-3700NC, new 1998, 33.4” swing over bed, 145.6” max. boring depth, .78” to 5.9” solid drilling cap., 0-100 RPM headstock speeds, 10-2,000 RPM drilling speeds, 22KW headstock motor, Fanuc Powermate PLC, 12 ½” 3-jaw universal chuck, Shenck TM2000 balancer unit, (2) damper rests, large selection of bushings, stuffing boxes, flanges & boring bars, chip conveyor, Koolant Koolers Mdl. HAV10000-P-CL-SO coolant filtration system, paper filter coolant unit, S/N 11.05509.026

CNC COUNTER ROTATING GUNDRILL

  • SIG MDL. B 17/4, new 1983, Fanuc CNC control, 157” max. drilling depth, 10” max. swing, V/S headstock & drill spindles, assorted pressure heads w/accessories, (3) steady rests, (2) fixture tables, 10” 3-jaw chuck, S/N 25-350

HORIZONTAL HONING MACHINES

  • GENERAL (SUNNEN) MDL. GH210-25-41R, new 1998, AB panel view PLC control, 41’ stroke, 18” swing, 1” to 12” bore capacity, 10-90 FPM stroking speeds, 10-230 RPM speeds, 25 HP, hyd. hone expansion, hyd. chain drive, (3) whip rests, (2) bushing style steady rests, 32” w x 42’ l double rail fixture table, Flowcon Mdl. HP-150/PBLS-28M paper filter honing oil system, S/N 0898212.
  • (2) BARNES DRILL MDL. 15HH, new 1981, 40’ stroke, 10-80 FPM stroking speeds, 25 HP, hydraulic chain drive, 30” wide x 45’ long fixture table, 3 bushing style steady rests, shared Barnes mdl. RMB100, paper filter honing oil system (offered separately), S/N ZP-10915, S/N ZP-10914
  • BARNES MDL. HH12-30 CNC HORIZONTAL HONING MACHINE, new 2013, 30’ stroke, 36” max. workpiece dia., 10-70 FPM stroking speeds, speeds, 50-500 RPM, 25 HP, (5) honing rods, (4) work support rests, sliding guards, , A B panel view controls, hyd. chain drive, S/N ZP11125
  • (2) BARNES MDL. 6D, 25’ stroke, mechanical chain drive, 25 HP, 18” w x 30” l fixture table, 4-point steady rest, open style steady rest, Barnes paper filter honing oil system, (offered separately), S/N: 8780, S/N 9207

HONING HEADS

  • (17) SINGLE, DOUBLE, & TRIPLE GANG HEADS BY BARNES AND OTHERS, including, 2” to 2 ½” bore dia. triple gang, .35” to 4” triple gang, 5” to 5 ½”, 6” to 6 ½”, 7” to 7 ½”, 8” to 8 ½” heads, with wide array of stone holders and selection of new and used stones

HYDRAULIC STRAIGHTENING PRESSES

  • SAVAGE 1000 TON MDL. TFS TRAVELING COLUMN, new 1998, 46’ bed length, 34” bed width, approx. 48” distance between columns, power motion v blocks, power motion lift blocks w/hydraulic lift and power rotation, approx. 40” ram face to bed, approx.14” stroke, power gantry travel, digital tonnage meter, .001” digital ram position readout, top mounted hydraulics, S/N 2120.
  • SAVAGE 350 TON TRAVELING COLUMN, new 1980, 35’ bed length, ?? bed width, 25” distance between uprights, 34 ¾” distance bed to ram face, (2) 2” thick x 15 ½” tall v rests, (3) 4” thick x 15 ½” tall v rests, (2) hyd. adjustable ball roller traveling rests, traveling operator platform, top mounted hydraulics, S/N 1429.
  • SAVAGE 42 TON, fixed frame machine, 12” between uprights, approx. 10” max. distance bed to spindle face, (2) pop-up pneumatic roller rests, 20’ infeed and outfeed heavy duty roller conveyor, 6” wide, independent hydraulic system, S/N 1532.

HOLLOW SPINDLE ENGINE LATHES

  • WOHLENBERG MDL. V1180 ENGINE LATHE, new 1983, 40.35” swing over bed, 26.37” swing over cross slide, 36’ distance between centers, 14 76” spindle bore, spds: 1.8 – 355 RPM, front and rear 31 ½” dia. 4-jaw chucks, (3) lg. steady rests, (3) med. steady rests, power compound, grinding attachment, inch/metric threading, 4-way tool post, taper attachment, (2) outboard roller steady rests on pedestals on sliding base, S/N 4300.

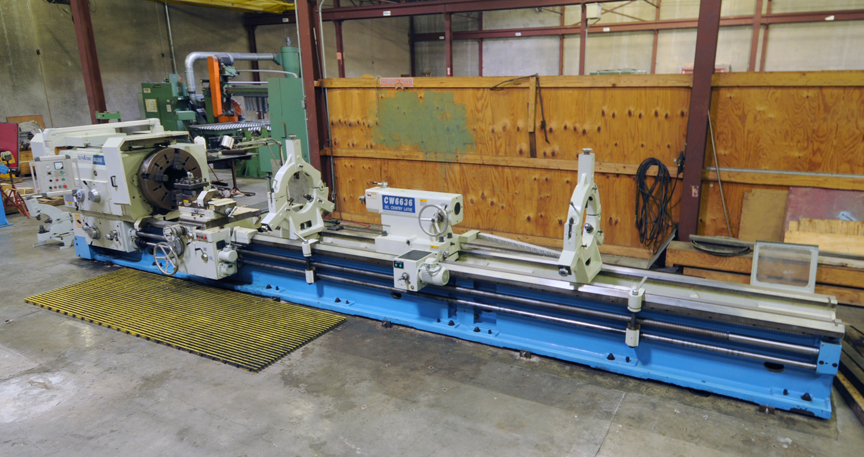

  • SPARK MDL. CW6636 HOLLOW SPINDLE ENGINE LATHE, new 2010, 39.37” swing over bed, 25.19” swing over cross slide, 20’ distance between centers, 14.17” spindle bore, speeds: 8 – 315 RPM, 22KW drive motor, 31 1/2” front and rear 4-jaw chucks, power compound, (2) steady rests, pwr. tailstock body, taper attachment, inch/metric threading, control pendant, 4- way tool post, follow rest, outboard steady rest w/adjustable height v roller unit, S/N 12-480.
  • (2) WOHLENBERG MDL. V1000, new 1998, 39.37” swing over bed, 28.34” swing over cross slide, 20’ (??) between centers, 10.23” spindle bore, speeds:2.8 to 560 RPM, 30KW, power compound, 4-way tool post, inch metric threading, power rapid traverse, (3) heavy duty roller jaw steady rests, follow rests, lower front carriage support way, front and rear 31 ½” dia. 4-jaw chucks, S/N 1234 w/(2) outboard steady rest stands S/N 1233 w/ (1) outboard steady rest stand
  • LEHMANN MDL. 2516 HOLLOW SPINDLE LATHE, 25” swing over bed, 16” swing over crosslide, 240” distance between centers, 12” spindle hole, spds: 10 – 397 RPM, airtrip threading, 4 way tool posts, roller jaw steady rest, front and rear 24” dia. hollow spindle chucks, S/N 241215121, rapid traverse.
  • LODGE & SHIPLEY MDL. PROFITURN 40, rebuilt and retrofitted 2015 w/Fanuc 0iTD CNC control, 34-1/2″ sw. over bed and carriage wings, 20″ sw.over crosslide, spds: 6–650 RPM in (3) ranges, 12-1/2″ spdl. hole, 14′ dist. btwn. centers, 4-pos. sq. turning turret, 12-pos. hex boring turret, 45 kW main spdl. drive motor, front and rear 28″ dia. 4-jaw chucks, outboard work suppt. rest w/pneu. lift, roller jaw steady rest, pwr. tailstock, additional control axis for customized tooling, full length chip conveyor, S/N 50938 (Auctioneers Note: S/N 50938–is 90+% finished on rebuilt and retrofit. The bid for finishing this machine will be available at time of inspection).
  • LODGE & SHIPLEY MDL. PROFITURN 40, Fanuc 18iT CNC control, 34-1/2″ sw. over bed and carriage wings, 20″ sw. over crosslide, spds: 6–650 RPM in (3) ranges, 12-1/2″ spdl. bore, 14′ dist. btwn. centers, 8-pos. sq. turning turret, 12-pos. hex boring turret, interchangeable 4-pos. turning turret and 6-pos. boring turret, 37 kW main spdl. drive motor, front and rear 32″ dia. 4-jaw hollow spdl. chucks, outboard work suppt. rest w/pneu. lift, chip conveyor, roller jaw steady rest, pwr. tailstock, S/N 50937.

TRAVELING COLUMN CNC HORIZONTAL MACHINING CENTERS

  • (2) SHW MDL. POWERSPEED 5, new 2007, Heidenhain TNC530 4-axis CNC control, 39.37″ x 354.3″ T-slotted work tbl., 314.96″ X-, 63″ Y-, 51″ Z-axis travels, 1,181 IPM rapids, 360 deg. C-axis head swivel, 180 deg. A-axis head swivel, CAT-50 spdl. taper, spdl. spds: 36–6,000 RPM, 45 kW spdl. drive motor, 90-pos. ATC, roll work holding and rotation system incl.; FIBRO CNC B-axis vert. rotary tbl. w/13.77″ thru hole, 27.5″ center ht., 5,500-lb. max. rotary tbl. cap., 27.5″ 4-jaw chuck, (3) Autoblok hyd. steady rests, 3.93″ to 13.77″ cap., probe system, (1) manual suppt. rest, scale feed back system, roller chip shields, S/N 5236, S/N 5237.

GRINDERS

  • TBT TWIN WHEEL GUNDRILL SHARPENER, new 2003, with angular sharpening fixtures and coolant system, S/N 824539-03
  • CINCINNATI NO. 2 TOOL AND CUTTER, 6” x 35 ½” power feed swivel table, torret dust collector, tilt swivel spindle unit, gun drill sharpening fixture, universal work head, grinding vice, internal grinding attachment, wheel collets, assorted table change gears, tooth rests, (2) sets of centers S/N F5860-E-81-09-08.
  • BROWN & SHARPE 8” X 18” MICROMASTER SURFACE GRINDER, 8” X 18” fine line magnetic chuck, , fine cross and downfeed, external coolant system, S/N 523-8186-9321.
  • QUALITY CONTROL EQUIPMENT
  • SATEC SYSTEMS MDL. 60HVL UNIVERSAL TENSILE TESTING MACHINE, 60,000 LB. CAP., , Mark III smart digital indicator, independent hydraulic power supply, joy stick controlled, S/N 60HVL-1311
  • SERVICE DIAMOND TOOL COMPANY HARDNESS TESTER MDL. H14-10, w/adjustable height stand, S/N 4005
  • BOWERS PRECISION AIR GAUGE SYSTEM, w/approx. 26 air gauging heads from 1.96” to 7.09” w/mandrel reciprocating air compressor and stand.
  • PRECISION GRANITE SURFACE PLATE, new 2008, 36 X 48 X 6”, 2 ledge design, w/heavy fabricated roller stand, grade A, S/N J-8-08.

HAND INSPECTION EQUIPMENT

HORIZONTAL BANDSAWS

  • (2) HEM MDL. H160A, new 1990, 25” round capacity, 2” blade size, 15 HP, auto feed, 10’ HD infeed table, 10’ aux. table w/power feed, 5’ heavy duty outfeed table, S/N 328790, S/N S/N 321590
  • HEM MDL. H105A, 16” w x 14” H capacity, 1.25” blade width, 7.5 HP, auto. feed, (2) 10’ heavy duty infeed roller conveyors, output table, S/N 366292.

VERTICAL BANDSAWS

  • METLSAW MDL. CC-510 CIRCULAR, 20” throat depth, variable speed, 10” to 72” circle diameter, pneumatic hold down, blade welder and grinder S/N N.A.
  • HEM MDL. V100LM TILT FRAME, 18” cutting width, 22” cutting height, 1.25” blade width, 5 HP, dual front hydraulic vises, S/N 326390.
  • MSC INDUSTRIAL MDL. 09514654, 24” throat depth, blade welder, grinder, variable speed, tilt table, S/N 0144.

ALUMINUM PLATE SAW

  • SAVAGE TRAVELING HEAD, 144” max cutting width, 144” max. material length, 12” max. material thickness, 40” blade dia., 75 HP blade drive, 16, 000 SFPM blade speed, arranged for non-ferrous material, chip conveyor, cyclone style dust collector, PLC table & head feed system.

PLASTIC MACHINERY

  • NEWBERY 30 T. MDL. V4-30ARS VERTICAL INJECTION MOLDING MACHINE, new 1997, Conair SC7.5 carousel dryer, vacuum feeder, S/N 119330-30AS-97.
  • CONAIR MDL. MPA3 PORTABLE CHILLER UNIT self-contained chiller, S/N 42866.
  • RECIPROCATING AIR COMPRESSORS
  • SPEEDAIRE MDL. 5F233B, 120 gal. horizontal tank, 10 HP drive, 34.2 scfm @175 psi, 175 max pressure, S/N L9-24-2001-00016.
  • INGERSOLL RAND T30 TANK MOUNTED, 25 HP, mounted to 240 gal. tank, new 1998, S/N 30T887366.

MISCELLANEOUS MACHINERY

  • ANDCO COMPANY TWO PLANE WIRE STRAIGHTENER, vertical and horizontal straightening rolls, input and output pinch rolls with pneumatic assist, chain drive.
  • CUSTOM PNEUMATIC CUT-OFF PRESS, 9” max. width, under driven up stroking air cylinder.
  • KIRA, MDL. KRTG-540 GEARED HEAD DRILL, #4 Morse Taper Spindle, spds: 95 – 1700 RPM, power feed, adjustable height table, S/N 53908.
  • MEGOMAT MDL. ASM3001A AUTOMATIC TERMINAL CRIMPING MACHINE, w/bowl feed, wire straightener, S/N 0007A0758.
  • ARTOS MDL. PF1 CRADLE FEED, S/N 42465, w/power pay off.
  • MILWAUKEE PANEL SAW, 5’ X 10’

MATERIAL HANDLING EQUIPMENT

  • ANVER VACUUM SHEET LIFTER, MDL. EP390M3-110, 3900 LB. LOAD CAP., VP3 vacuum generator, (3) vacuum cups, 12’ lgth, max. load lgth 12’, max load with 6’, w/built in stand, 110 V operation, S/N EP93141.
  • KADY 7 ½ T. CAP. POWER SHEET LIFTER 15,000 LB. CAP., MDL. HSL7584MSP-1, operation, 96” lgth, S/N 11-46925.
  • BUSHMAN 5 T. CAP. SHEET LIFTER 10,000 LB. CAP., MDL. 5500, manual expansion, S/N B9961-B
  • (4) AMERACRANE ½ T. CAP. PEDESTAL JIB CRANE, ½ T. demag elect. Chain hoist, approx. 10’ reach, 8’ height under hook, free standing design,
  • SHANNAHAN 4 T. CAP. SPREADER BAR, 24’ ft. l., w/stand, 5 underhung hooks.
  • (4) CUSTOM SPREADER BARS 5 underhung hooks, 400” l, unknown cap., w/stand.
  • FORKLIFT STYLE BARREL HANDLER W/CHAIN TILT
  • ASSORTED STACKING MATERIAL RACKS

(14) GALBREATH 3 CU. YD. SELF-DUMPING HOPPERS; (18) GALBREATH 1-1/2 CU. YD. SELF-DUMPING HOPPERS; GALBREATH 1 CU. YD. SELF-DUMPING HOPPER; FORKLIFT BARREL HANDLER; (2) HYDRAULIC PALLET JACKS; BANDING CART w/tools; SEVERAL 2-WHEEL DOLLIES
