Worldwide Industrial Auctions & Liquidations
Online Auction
By Order Of U.S. Bankruptcy Court For The Eastern District Of Tennessee, Case No. 16-30308 – D&H Machine Service, INC.
CNC Vertical Machining Centers: (2) 2001 & 1999 Haas VF-5-50, 2001 Haas VFOB, 1998 Haas VF-8, 2002 Ameri-Seiki Mdl. DM-100 Double Column; CNC Horizontal Machining Center: Giddings & Lewis Mdl. 987-15HS Traveling Column; Turning Centers: (2) Okuma Mdl. 762S-BB Crown; Geared Head Engine Lathes: (3) Inc. American Pacemaker, Toolmex, Danichi - up to 124" Centers; Vertical Boring Mill: King 72"; Keyseater: Hansford Davis Mdl. 15; Horizontal Bandsaw: DoAll 9" x 16"
September 28, 2017
1:00PM EST
Strawberry Plains, TN
View Brochure Share Print
Contact for Sale
Adam Herman
Email Me
631-249-5566
Inspection Date
By Appointment
In Conjunction With
Prestige Auctions
Featured Assets

LATHES:

  • American Pacemaker Engine Lathe, with 16” swing over bed ways, 12” swing over cross slide, 54” center distance, 1-3/4” spindle hole, 1000 RPM, .002-.118 IPR feeds, tailstock, 12” 3-jaw chuck with hard jaws, Newall C70 digital readout
  • Toolmex Mdl. TUR630A/157 Engine Lathe, with 25” swing over bed, 14.6” swing over cross slide, 40”-157” distance between centers, 20HP main drive motor, 4.1 standard spindle bore, 18-1800 RPM, 3300# max load capacity, z-axis rapid traverse, MT5 tailstock, 17” bed width with TRI-V ways, 9900# machine weight, 3 & 4-jaw chucks, [2] steady rests, Newall 80C digital readout, chip pan, S/N: 50758
  • Hansford Davis Mdl. 15 Keyseater, with 1/16” – 1-1/2” capacity, 31” x 20” table, 19” throat, 12” max work height, 1.5” table movement, 4.5” stroke, 45 SPM, 4” cutter, 8” cutter, 12” cutter, 2HP motor, 1300# weight capacity, 40” x 44” x 48”, 440v, 3ph, S/N: 151072
  • Danichi Mdl. DM-300 Engine Lathe, with 30” swing over bed, 124” distance between centers, 4” spindle bore, 21” swing over cross slide, 8-650 RPM, 20HP motor, 24” 4-jaw chuck, 15” steady rest, 20” steady rest, inch / metric threading, 14” removable gap, tailstock, 4-way rapid traverse on saddle, Newall digital readout, 15,000# max weight capacity, S/N: 14330 (1976)

CNC HORIZONTAL MACHINING CENTER:

  • Giddings & Lewis Mdl. 987-15HS Traveling Column CNC Horizontal Machining Center, with New Fanuc Oi control, travels: x-72”, y-36”, z-24”, 30-3110 RPM spindle speed, CAT 50 spindle taper, 20HP DC continuous spindle, 48-tool changer, coolant flood & low pressure thru spindle, chip conveyor, [2] 22” OD built-in pallet rotary tables, B-pallet rotation 360,000 position, 84” length x 25” wide pallet size, S/N: 987-5028-88 [Located @ 5320 S. National Dr, Knoxville, TN 37914]

CNC VERTICAL MACHINING CENTERS:

  • Ameri Seiki (Viper) Mdl. DM-100 Double Column CNC Vertical Machining Center, with Mitsubishi Meldas 600M Series, 64” x 80” table, 22,046# table load capacity, travels: x-61”, y-87”, z-36”, 40-6000 RPM spindle speeds, 35HP spindle drive, CAT 50 taper spindle nose, 7.5” – 44” spindle nose to table, 102” distance between column, 30-position automatic tool changer, 44# max tool weight, 4.92” x 13.8” max tool size, 220v, absolute encoder controls, 3-axis position feedback, remote manual pulse generator, hydraulic counter balance, Turcite “B” way surface, [3] chip conveyors, coolant, spindle oil cooler, 1-piece base, 224” x 274” floor space, 55,115# max weight, S/N: 003445 (New 2002) [Located @ 5320 S. National Dr, Knoxville, TN 37914]
  • Haas Mdl. VF8 CNC Vertical Mill, with 36” x 64” table, travels: x-64”, y-40”, z-30”, 4”-34” spindle nose to table, BT40 spindle taper, 7500 RPM spindle speed, 20HP spindle drive, rapids: x-540 IPM, y-600 IPM, 20-position automatic tool changer, programmable coolant nozzle, geared head, remote joy handle, 1MB memory, 4th axis, chip auger, floppy disc drive, internal transformer, vector drive, rigid tapping, S/N: 13825 (1998)
  • Haas Mdl. VF5-50 CNC Vertical Mill, with 62” x 23” table, travels: x-50”, y-26”, z-25”, rapids x/y/z 710 IPM, 20HP spindle drive, 5000 RPM spindle speed, CAT 50 spindle taper, 30-position side tool tool changer, programmable coolant, geared head, chip auger, remote joy handle, floppy disc drive, high intensity lighting, tool changer, rigid tapping, 30HP motor, 17,200# max weight, S/N: 25408 (2001)

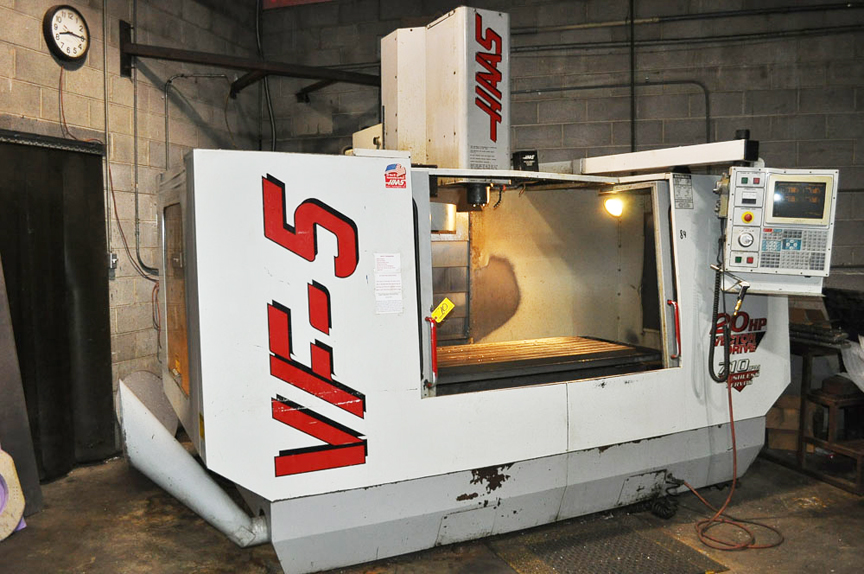

  • Haas Mdl. VF5 CNC Vertical Mill, with 62” x 23” table, 4” high slotted sub table, travels: x-50”, y-26”, z-25”, rapids x/y/z 710 IPM, 20HP spindle drive, 7500 RPM spindle speed, CAT 40 spindle taper, 20-position automatic tool changer, programmable coolant, geared head, remote joy handle, floppy drive, 14,600# max weight, S/N: 17407 (1999)
  • Haas Mdl. VFOB CNC Vertical Mill, with 14” x 26” table, CAT 40 taper, 20-position automatic tool changer, 4”-24” spindle nose, travels: x-20”, y-16”, z-20”, 7500 RPM max, 20HP spindle motor, rapid 710 IPM, 88” long x 93” wide x 106” high, 8000# max weight, brushless servo, floppy drive, chip conveyor, rigid tapping, S/N: 24981 (2001)

CNC TURNING CENTERS:

  • Okuma Mdl. 762S-BB Crown Big Bore, with 21.65” max swing over bed, 15.75” max swing over cross slide, 10.63” max turning diameter, 19.68” max machine length, 3.15” spindle bore, travels: x-7.28”, z-20.47”, A2-8 spindle nose, 3500 RPM spindle speed, 12-station turret, 10” Kitagawa chuck with hard jaws, OSP700L conversation programming, 23HP spindle, 9900# max weight, chip conveyor, S/N: 1161
  • Okuma Mdl. 762S-BB Crown Big Bore, with 21.65” max swing over bed, 15.75” max swing over cross slide, 10.63” max turning diameter, 19.68” max machine length, 3.15” spindle bore, travels: x-7.88”, z-20.47”, A2-8 spindle nose, 3500 RPM spindle speed, 12-station turret, 10” Kitagawa chuck with hard jaws, OSP700L conversation programming, 23HP spindle, 9900# max weight, chip conveyor, S/N: 0259

VERTICAL BORING MILL:

  • King 72” Vertical Boring Mill, with 72” table, 79” max swing, 60” height under rail, 1.3 – 45 RPM table speeds, feeds .003 to .500 IPR, 30HP main motor, 36” vertical travel of turret, 60” right hand turret travel cross, 214” machine width left to right, 156” machine depth front to back, 158” machine height, 55,000# max weight, [2] turret heads, rapid traverse on all heads, power rail elevation, flush mounted machine, no pit required, S/N: 2545[Located @ 5320 S. National Dr, Knoxville, TN 37914]

HORIZONTAL BANDSAW:

  • Doall Mdl. C-916A 9” x 16” Horizontal Bandsaw, with 2HP motor, 3ph, 480v, 159” band length, 105-275 RPM variable speed, 3/16” – 24” index, 9” x 16” square capacity, 10-3/4” round capacity, 45-90° adjustable mitre cut, recirculation coolant system, 1” x .035” x 158” blade size, automatic feed, S/N: 502-95508
Auction Location
4903 Shady Road, Strawberry Plains, TN 37871 Get Directions
