Worldwide Industrial Auctions & Liquidations
Online Auction
Mazak, Nakamura Tome & Matsuura CNC Multi-Axis Turning, Horizontal & Vertical Machining Centers
SURPLUS TO PRECISION CHEMICAL PUMP MANUFACTURER: Mazak Quick Turn Nexus 250-II MSY, Mazak Multiplex 6200Y, Mazak QT-200 CNC Turning Centers; Nakamura Tome TW-30MM, Nakamura Tome TW-20 CNC Turning Centers; Mazak HCN-6000-II, Mazak FH-6000 CNC HMCs; Matsuura RA-4F CNC VMC; Greenerd HCA-100-52-R6 Open Gap C-Frame Hydraulic Press
October 26, 2016
2:00PM EST
North Wales, PA
Share Print
Contact for Sale
Paul Lashin
Email Me
631-249-5566
Inspection Date
October 25, 2016 or By Appointment
9:00AM - 4:00PM EST
Featured Assets

NAKAMURA TOME TW-30MM 7-AXIS CNC TWIN SPINDLE TURNING CENTER WITH LIVE MILLING, Fanuc 16TT CNC Control, 13.18″ Max. Turning Dia., 11.81″ Max. Turning Length, 3.35″ Spindle Bore, 2.79″ Max. Bar Capacity, 12.6″-51.18″ Distance Between Spindles, (2) 12-Station Turrets with Driven Tool Positions, C-Axis 0.001 Deg. Rotation, Left Turret Y-Axis Travel +/-2.75″, L & R Spindles: 3600 RPM / 30 HP, Driven Tools: 3600 RPM / 7 HP, (2) Tool Setters, Part Catcher, Part Cutoff Detector, NT Nurse, Turbo Chip Conveyor, with Riken SAD-65 Collect Chucks on Main and Sub Spindles, Approx. 10-Live Tool Holders, 32-Stationary Tool Holders, LNS Hydrobar B68HS-5.2 Bar Feed, SN W300802, [1997]

NAKAMURA TOME TW-20 6-AXIS CNC TWIN SPINDLE TURNING CENTER WITH LIVE MILLING, Fanuc OTC CNC Control, 10.62″ Max. Turning Dia., 7.55″ Max. Turning Length, 2″ Max. Bar Capacity, 11.81″-42.51″ Distance Between Spindles, (2) 12-Station Turrets with Driven Tool Positions, C-Axis 0.001 Deg. Rotation, Left Turret Y-Axis Travel +/-2.75″, L & R Spindles: 5000 RPM / 20 HP, Driven Tools: 3600 RPM / 7 HP, (2) Tool Setters, Part Catcher, High Pressure Coolant, Air Blow, Chip Conveyor, with Hardinge 16C Collet Nose on Left Spindle, Hardinge 16DS Collet Nose on Right Spindle, Approx. 7-Live Tools, 32-Stationary Tools, LNS Hydrobar 6.52HS-5.2 Bar Feed, SN W24511

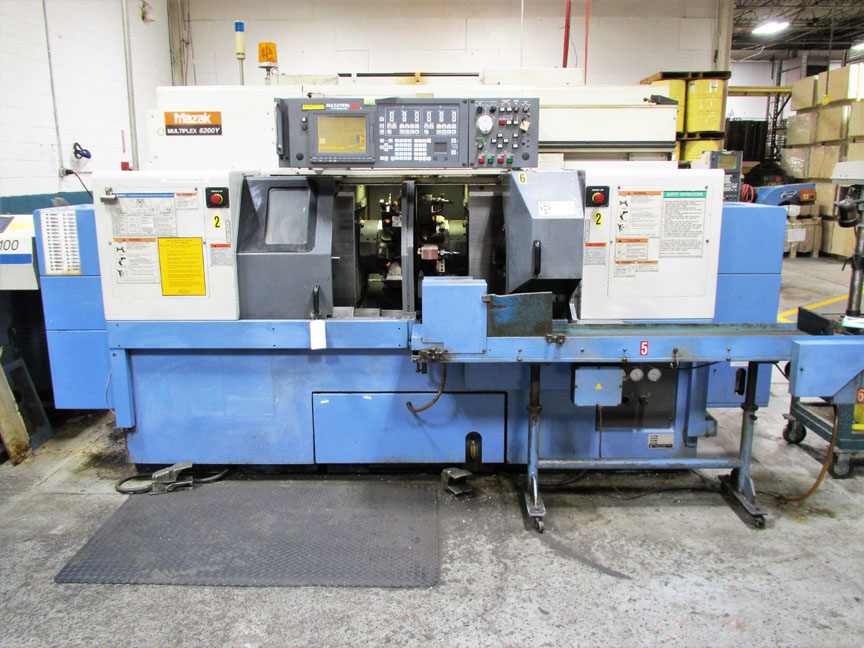

MAZAK MULTIPLEX 6200Y 8-AXIS CNC TWIN SPINDLE CNC TURNING CENTER WITH LIVE MILLING, Mazatrol PC Fusion 640T CNC Control, (2) 12-Pos. Turrets (12 Turning, 12 Milling), 12.5″ Max. Swing, 10.24″ Max. Turning Diameter, 46.85″ Max. Turning Length, 2″ Bar Capacity, 2.4″ Spindle Bore, Axes Travels: X-9.37″, Y-4″, Z1-17.25″, Z2-19.37″, C-0.001 Deg. Rotation, Y-Axis Both Turrets, (2) 8″ 3-Jaw Chucks, 30 HP Main Motor, 5 HP Rotary Tool Motor, 35-5000 RPM Main Spindle Speed, 4500 RPM Rotary Tool Speed, Parts Conveyor, Rear-End Chip Conveyor, With SMW Space Saver 200 Magazine Barfeed, Approx. 5-Live Tools, 17-Stationary Tools, (2) 5-Drawer Tool Cabinets With Misc. Tooling, SN 317148157, [2000]

MAZAK QUICK TURN NEXUS 250-II MSY CNC TURNING CENTER WITH LIVE MILLING, Mazatrol Matrix Nexus CNC Control, 13.78″ Max. Machining Diameter, 12-Position Turret, Main Spindle: 10″ Kitagawa 3-Jaw Chuck/4000 RPM/ 35 HP; Sub-Spindle: 6″ Kitagawa 3-Jaw Chuck/6000 RPM/15 HP; Rotary Tools: 4500 RPM/7.5 HP, 3″ Max. Bar Capacity, Travels: X-9″, Y-4″, Z-43.11″, Tool Setter, Chip Conveyor, With Mazak Flex-GL-100F Gantry Robot & Part Stacker, With Approx. 5-Live Tools, 7-Stationary Tools, SN 195617, [2007]

MAZAK QT-200 CNC TURNING CENTER, Mazatrol PC Fusion 640T CNC Control, 18.5″ Max. Swing, 13.5″ Max. Cutting Diameter, 12.6″ Max. Cutting Length, 8″ 3-Jaw Chuck, 2″ Max. Bar Capacity, 2.4″ Spindle Bore, Travels: X-6.7″, Z-12.6″, Spindle Speeds 40-4000 RPM, 15 HP Motor, 12-Position Turret, Tool Setter, Tailstock, 1181 IPM Rapids, Jorgenson Chip Conveyor, with 4-Drawer Cart & Misc. Tooling, LNS Hydrobar 6.65-HS-52 Bar Feed, SN 142345, [1999]

MAZAK HCN-6000-II CNC HORIZONTAL MACHINING CENTER WITH PALLETECH SYSTEM, 10-Pallet Mazak Palletech System, Mazatrol Matrix Nexus CNC Control, Travels: X-31.5″, Y-31.5″, Z-31.5″, Max. Workpiece Height 39.37″, Pallet Size 19.7″ x 19.7″, 240-Station Automatic Tool Changer, Spindle Speeds to 6000 RPM, CAT-50 Taper, 900 PSI High Pressure Through Spindle Coolant, Chip Conveyor, SN 19570 [2007] (NOTE: Tooling & Tombstones As Shown In Photos Not Included)

MAZAK FH-6000 CNC HORIZONTAL MACHINING CENTER WITH PALLETECH SYSTEM, 6-Pallet Mazak Palletech System, Mazatrol PC-Fusion 640M CNC Control, Travels: X-31.5″, Y-31.5″, Z-31.5″, Pallet Size 19.7″ x 19.7″, 160-Station Automatic Tool Changer, Spindle Speeds to 4500 RPM, CAT-50 Taper, 900 PSI High Pressure Through Spindle Coolant, Chip Conveyor, SN 160458 [2002] (NOTE: Tooling & Tombstones As Shown In Photos Not Included)

MATSUURA RA-4F CNC VERTICAL MACHINING CENTER WITH APC, Travels: X-40.15″, Y-21.65″, Z-20.08″, 2-Pallet APC, 39.47″ x 19.3″ Pallets, 40-Position ATC, 8000 Max. RPM, CAT 40 Spindle Taper, 1000 PSI Through Spindle Coolant, Turbo Chip Conveyor, Yasnac i80 CNC Control, SN 970512603, [1997]

GREENERD HCA-100-52-R6 100 TON OPEN GAP C-FRAME HYDRAULIC PRESS, 100 Ton Capacity, 34″ x 20″ Bed, 13″ Throat, 18″ Stroke Length, 24″ Daylight, 484 IPM Rapid Advance, 28 IPM Pressing, 20 HP Motor, SN HCA-100-52R6 89T-4328

(129) Assorted CAT-40 Tool Holders with 4-Drawer 160-Pocket Stanley Vidmar Cabinet

(45) Assorted CAT-40 Tool Holders with 48-Pocket Hout ToolScout Rolling Tool Cart

(4) Live Tool Holders For Mazak Multiplex 6200Y CNC Turning Center

(1) ID Fixed/Stationary Tool Holders, (6) Fixed/Stationary Tool Holders For Mazak 6200Y Multiplex

(9) Live Tool Holders For Mazak QTN-250II-MSY CNC Turning Center

(9) I.D. Fixed/Stationary Tool Holders For Mazak QTN-250II-MSY CNC Turning Center

(7) O.D. Fixed/Stationary Tool Holders For Mazak QTN-250II-MSY CNC Turning Center

1.1878″ OD Roller Burnishing Tool
