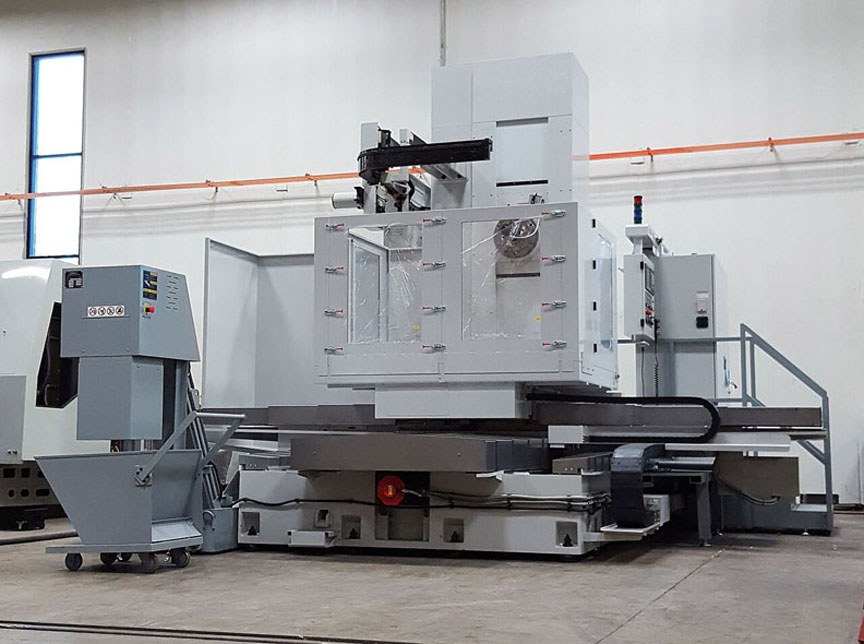

NEW IN ORIGINAL PACKING CRATES! (6) HBM110XT 4.3” CNC Horizontal Boring Mills, Fanuc 32i-MB CNC control, 60 ATC, X-78.7”, B-Axis Rotary Tables, TSC
August 16, 2016
2:00PM EST
Indianapolis, IN
Share Print
Contact for Sale
Scott Linzer
Email Me
631-249-5566
Inspection Date
By Appointment
Featured Assets

pdf-flat copy CLICK FOR MORE DETAILS

STANDARD FEATURES

• Fanuc 32i-MB CNC control
• 10.4″ LCD Color Display
• Manual Guide i
• 60 Pocket Double Arm Automatic Tool Changer
• 3000 RPM 50 Taper Spindle
• Powerful 30/25 HP Spindle Motor
• Rugged Two Speed Geared Head
• B-Axis Simultaneous 360,000 Position Rotary Table
• Locking Pins Every 90 Degrees
• Table Mounted Chip Auger and Chip Conveyor Chip Removal System
• Automatic Lubrication
• Spindle Extension Sleeve
• Remote Handwheel
• Spindle Oil Chiller
• Hydraulic System
• Flood Coolant System
• 700 psi Coolant Through Spindle
• Table Chip/Coolant Guarding
• Work Light
• Rigid Tap
• Spindle Orientation
• Cycle End and Warning Light
• Auto Power Off Function
• Ethernet Connection
• RS-232 Interface

SPECIFICATIONS

CAPACITY:
X axis travel 78.7″ (2000 mm)
Y axis travel 66.9″ (1700 mm)
Z axis travel 55.1″ (1400 mm)
W axis travel 21.6″ (550 mm)
With spindle extension sleeve 11.5″ (290 mm)
B axis – Contouring 360,000 Positions

TABLE:
Table size 59 x 49″ (1500 x 1250 mm)
Table Height 51″ (1290 mm)
Table load capacity 11,000 lb (5000 kg)
T-Slot size 0.87″ (22 mm)
Table clamping system Hydraulic
Table clamping force 5700 ft-lb (800 kg-M)
Locking Pins 90° Positions

SPINDLE:
Distance from spindle nose to table center 0 – 55.1″ (0 – 1400 mm)
Distance from table top to spindle center 0 – 66.9″ (0 – 1700 mm)
Boring Spindle Diameter 4.3″ (110 mm)
Spindle taper ISO No. 50
Spindle speed 3000 RPM
AC spindle motor 30/25 HP (22/18.5 kW)
Spindle Transmission Two Range Geared – Automatic Shift
Gear ratio (High) – 2:1 35 – 3000 RPM
Gear ratio (Low) – 6:1 35 – 1100 RPM
Spindle torque 636 ft-lb (863N.m)

AUTOMATIC TOOL CHANGER:
Number of tools 60
Tool shank CT50
Pull stud ANSI Retention Knob 50 Taper
Max. tool diameter 4.9″(1125 mm)
With empty adjacent pockets 10″(250 mm)
Max. tool length 15.7″ (400 mm)
Max. tool weight 55 lb (25 kg)
Tool change time 16 Sec

MOTION:
X, Y/ Z / W axis rapid traverse rate 590/470/393 IPM (15/12/10 m/min)
Ball Screw Dia/Pitch X, Y,Z 55 mm / 12 mm
Ball Screw Dia/Pitch W 40 mm / 5 mm
B axis rapid traverse rate 2.5 RPM
Max. cutting feedrate X, Y, Z, W 200 IPM (5000 mm/min)
Max. cutting feedrate B 2.5 RPM
Positioning accuracy X, Y, Z, W ±0.00059″ (±0.015 mm)
Repeatability X, Y, Z, W 0.00047″ (0.012mm)
Positioning accuracy B ± 15 Sec
Repeatability B 5 Sec
Axis thrust force (continuous) X, Z / Y / W 3500/4600/3300 lb (1600/2100/1500 kg)
B axis cutting force 4600 ft-lb (640 kg-M)

GENERAL:
Machine height 159″ (4030 mm)
Floor space required (W x D) 210″ x 248″ (5335 x 7055 mm)
Approximate machine weight 54,000 lb (24,500 kg)
Power required 57 KVA / 150 amps
Voltage required 208-240 Volts / 3 Phase
Air required 85 PSI (6 kgf/cm2) at 4 CFM (65 L/m)
