Worldwide Industrial Auctions & Liquidations

Onsite & Online Auction

CNC Lathes, CNC HBM, Fadal VMCs, Robots

ONE OF AMERICA’S LEADING SPECIALTY TOOLING & PRECISION MANUFACTURING, DESIGN & FABRICATION FIRMS: Large Capacity Giddings & Lewis MC-60 3-pallet HBM with 102 position ATC Maag, Fadal VMCs as new as 2008 Leadwell and Hyundai Kia CNC lathes new as 2008 Several Manufacturing Cells with Hitachi Seiki CNC lathes and Fanuc Robots, Lathes, Metallizing Lathes; Bridgeports; E.D.M.s; Saws incl. 2011 Cosen Horizontal Bandsaw; Plain Cylindrical & Surface type Grinders; Quality Control Department; Tooling; Repair Parts; Welders; Blast Cabinet; Air compressor; Forklifts up to CAT 10,000 cap.; Plant Support Equipment & More!
October 20, 2015
Grand Prairie, TX
View Brochure Share Print
Contact for Sale
Paul Lashin
Email Me
631-249-5566
Inspection Date
631-249-5566
In Conjunction With
Prestige Auctions
Sale Information

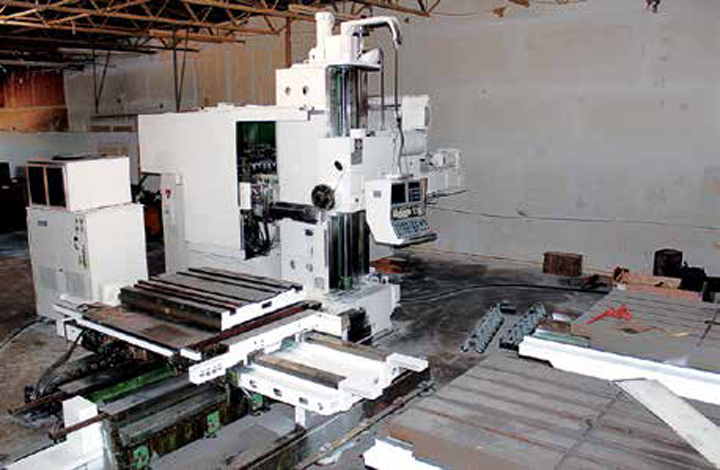

GIDDINGS & LEWIS 6″ MDL. MC60 CNC Horizontal Boring Mill, Giddings & Lewis 8000 CNC control, 72″ x 48″ rotary tbl., 25,000- lb. tbl. load, 85″ X-axis tbl. travel, 54″ Y-axis head travel, 72″ W-axis saddle travel, 48″ Z-axis spndl. travel, CAT-50 taper, 12–2,500 RPM, (3) 72″ x 48″ pallets on independent pallet stands, H.D. 3-way vert. column, 120-pos. ATC, thru-spndl. coolant, Hansen spndl. chiller system, S/N 450-239-89.

MAAG FADAL MDL. VMC4020FX CNC Vertical Machining Center, new 2008, Fanuc 0i-MC CNC control, 20″ x 48″ tbl., 40″X, 20″Y, 28″ Z-axis travels, CAT-40, 10,000 RPM, 22 HP, 21-pos. ATC, S/N 012008061721

FADAL MDL. VMC4020HT 4-AXIS CNC Vertical Machining Center, Fadal CNC88HS CNC control, 20″ x 48″ tbl., 40″X, 20″Y, 28″ Z-axis travels, CAT-40, 10,000 RPM, 15 HP, 21-pos. ATC Fadal horiz. 10″ rotary tbl. w/chuck, 20-pos. ATC, S/N 9604510.

FADAL MDL. VMC2216 (VMC40) CNC Vertical Machining Center, Fadal CNC88HS CNC control, 16″ x 39″ tbl., 22″X, 16″Y, 20″ Z-axis travels, CAT-40, 10,000 RPM, 15 HP, 21-pos. ATC, S/N 9505760

(5) FANUC S-420iF 6-Axis Robots, 264-lb. payload, 112.2″ high reach, end effector,
S/N E98506940, S/N E97204041, S/N N.A., S/N E98600198, S/N N.A.

(4) FANUC S-420iW 6-Axis Robots, 341-lb. payload, 112.2″ high reach, end effector, S/N E98606447, S/N E99903369, S/N E99304714 S/N E98506942.

LEADWELL MDL. T-8 CNC Lathes, new 2007, Fanuc 0i-TC CNC control, 26.3″ sw.
over bed, 17.71″ cutting dia., 23.6″ turning lgth., 3.5″ spndl. bore, 3,500 RPM, 33 HP, 10″ dia. 3-jaw through hole, tool presetter, 12-station block turret, tailstock, chip conveyor, S/N 12TJG0012

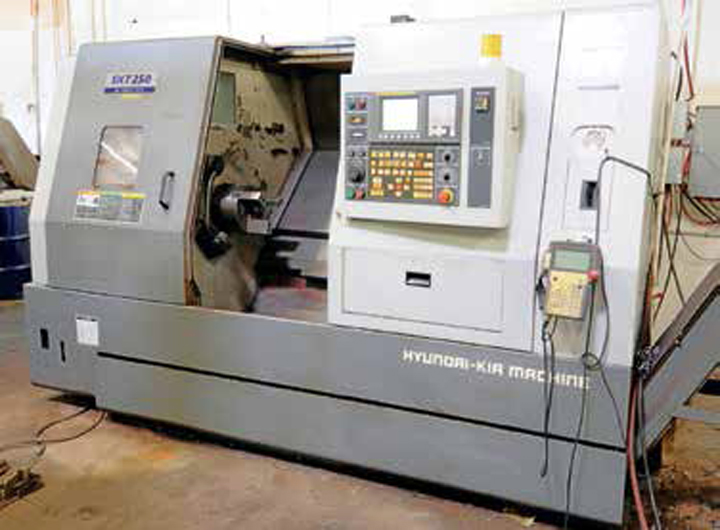

HYUNDAI KIA MDL. SKT-250 CNC Lathes, new 2008, Fanuc 0i-TC CNC control,
24.4″ sw. over bed, 19.6″ cutting dia. 27.55″ btwn.centers, 3.7″ spndl. bore, 10″ dia. 3-jaw chuck, tool presetter, 12-station block turret, tailstock, chip conveyor, Schmidt bed mtd. roller jaw steadyrest, S/N SKT250321

HITACHI SEIKI MDL. HT23SIII CNC Lathe, Seicos Multi CNC control, 10-station KV turret, 10″ through hole hyd. chuck, tool presetter, tailstock, S/N 3118.

(3) HITACHI SEIKI Mdl. HT20SIII CNC LATHES, 17.7″ sw. over bed, 9″ cutting dia., 15″ distance between cc, 2″ bar cap., 30–5,000 RPM, 20 HP spndl. motor, 8″ dia. thru hole, tool presetter, 10-station KV turret, S/N 3331, S/N 3049, S/N 3048

(12) HITACHI SEIKI MDL. HT20SII CNC LATHES, 17.7″ sw. over bed, 9″ cutting dia., 15″ distance btwn.cc, 2″ bar cap., 30–5,000 RPM, 20 HP spndl. motor, 8″ dia. through hole chuck, tool presetter, block style turret, tailstock, chip conveyor, S/N 2213 w/Yasnac CNC control and 12-station turret, S/N 2553 and S/N 2147, tailstock, w/Seicos Multi CNC control and 10-station KV style turret, S/N 2716 w/Yasnac LX3 CNC control, 8″ dia. 3-jaw chuck and 10-station KV style turret, S/N 2938 w/Seicos Multi CNC control and 12-station block turret, S/N 2597 w/Yasnac LX3 CNC control, 12-station block turret and tailstock, S/N 2168 and S/N 2625 w/Seiki Multi CNC control, S/N 2830 and S/N 2831 w/Seiki Multi CNC control, S/N 2394, S/N 2634 w/Seiki Multi CNC control, 10-station KV turret and tailstock.

CHARMILLES MDL. ROBOFIL 290F 5-AXIS WIRE EDM Machine, Fanuc
CNC control, chiller unit, water filtration system, S/N 200003-340042

ELTEE PULSITRON MDL. TRM-21 EDM Machine, 11″ x 16″ table, 15″W. x 20″L. x 11″ dp. work tank, 3-axis D.R.O., System 3R chuck, Eltee Pulsitron Mdl. EP300CP pwr. supply unit, 6″ x 18″ perm. magnetic chuck, S/N FC-9002072A.

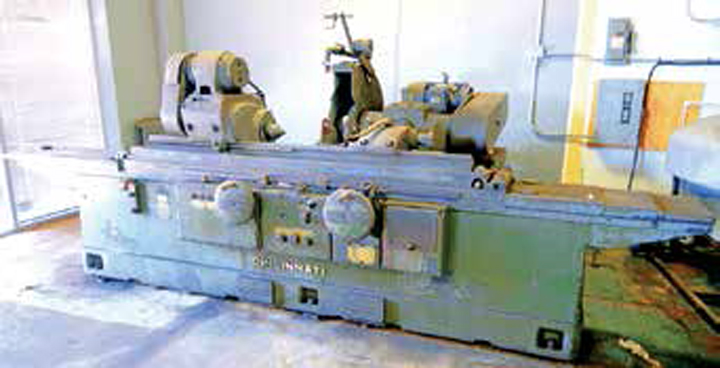

(2) CINCINNATI 10″ X 48″ Plain Cylindrical Grinders, infeed, plunge grinding attach., S/N 3P2E1Z-6, S/N 3P2D5E-5.

AMW 10″ X 20″ MDL. GS-1020BH AUTOMATIC Surface Grinder, new 2001, digital downfeed unit, 12″ wheel, over-the-wheel dresser, coolant system, S/N 0411D-01

(2) HARIG MDL. 612 HAND FEED Surface Grinder, 6″ x 12″ perm. magnetic chuck, 6″ wheel, cabinet base, S/N 16494, S/N 16901

(2) BRIDGEPORT SERIES 1 Vertical Turret Milling Machines, 9″ x 48″ table, 2 HP variable spd. drive, chrome ways, long. pwr. feed, 2-axis D.R.O., S/N 267315, S/N 443360288X

COSEN MDL. C-TECH C2 Automatic Horizontal Bandsaw, new 2011, 1-1/4″ blade, 260mm dia. workpiece size, 260mm x 260mm sq., 300mm x 260mm rect., blades spds.: 20–100 MPM, 4 kW blade drive motor, EZ View LC control, S/N C1000047

ROLL-IN Vertical Bandsaw, 10″ throat depth, on roller base, S/N 78013.

TUDA 15″ X 40″ Metallizing Engibe Lathe (converted for metallizing), Go-Fer
III variable spd. carriage, pre-heater torch w/gauges, combustion metallizing gun.

CHINESE MFG. 14″ X 40″ Metallizing Engine Lathe, Go-Fer III variable spd. carriage, Metco Type 5P combustion metallizing gun w/powder hopper, pre-heat torch, gauges

PRECISION INSTRUMENTS: TESA HITE 600 ELECTRONIC HEIGHT GAUGE; 24″ VERNIER HEIGHT GAUGE; MITUTOYO 24″ DIAL TYPE HEIGHT GAUGE; PRECISION GRINDING ATTACHMENT; TOOLPOST GRINDER; IMPERIAL NEWBOULD GRIND-IT GRINDING FIXTURE; GRIND-ALL NO. 1 FIXTURE; 48″ X 72″ X 6″ THK. GRANITE SURFACE PLATE, Grade B; WIDE SELECTION OF KV STYLE HOLDERS for Hitachi Seiki lathes; R-8 SPINDLE TOOLING; ASSORTMENT OF INDEXABLE CARBIDE TURNING TOOLHOLDERS, DRILLS, BORING BARS, CUT-OFF TOOLS, ETC.

MISCELLANEOUS SHOP & WAREHOUSE EQUIPMENT: (2) CANTILEVER STORAGE RACKS, 4-uprights, dual side, 24″ arm, medium cap.; (8) INTERLAKE TIER DROP STYLE PALLET RACK SECTIONS w/10′ beams, 14′ uprights; ASSORTED 24″ HIGH QUALITY PEDESTAL FANS; TRINCO DRY BLAST BLAST CABINET; 1/2″ DRILLS; MILWAUKEE HAMMER DRILL; 4″ RIGHT ANGLE GRINDER; RECIPROCATING SAW; ORBITAL SANDER; BOSCH HAMMER DRILL; MAKITA RECHARGEABLE DRILLS; VOLSTRO ROTARY MILLING ATTACHMENT; 2-AXIS 6 X 12″ MAGNETIC SINE;
MITUTOYO 12″ HEIGHTMASTER.
