Worldwide Industrial Auctions & Liquidations
Online Auction
Aerospace & CNC Machining Facility
(2) CNC Horizontal Machining Centers: (2007) Makino A71 4-Axis, Mandelli Mectra-6 4-Axis; (6) CNC Vertical Machining Centers: (2006) DAH LIH MCV1700, (2006) Doosan MV4020/50, OKKMCV460, (3) Johnford CMV1120; CNC Lathe: DMTG Dalian DL-32; Miscellaneous Machinery: Harrison M300 Lathe, Bridgeport Mills, Sunnen MBB1650 Hone, 36" DoAll Contouring Vertical Bandsaw, Inspection: Various Pin Gage Sets, Jo-Blocks, Height Gauges, Mics, Etc., Forklift: 3,000 LB Mitsubishi FGC15 LP; Plus Huge Quantity of Shop Support Items.
August 15, 2017
1:00PM EST
Bohemia, NY
View Brochure Share Print
Contact for Sale
Paul Lashin
Email Me
631-249-5566
Inspection Date
Monday, August 14
8:00AM - 4:00PM
In Conjunction With
Prestige Auctions
Featured Assets

CNC HORIZONTAL MACHINING CENTERS
• MAKINO A71 4-Axis CNC Horizontal Machining Center, with Makino Pro-5 CNC control, Travels: X-29”, Y-29”, Z-32”, full B-axis rotation, dual 19.7” x 19.7” pallets, 1540 lb. workpiece weight, 47 HP motor, 60 ATC, 10,000 RPM, CAT 50 taper, through spindle coolant, chip conveyor, SN 649, New 2007
• MANDELLI Mectra-MF6 4-Axis CNC Horizontal Machining Center, with Fanuc 15M CNC control, Travels: X-32.28”, Y-29.92”, Z-29.92”, dual 24.8” x 24.8” pallets, full B-Axis rotation, 3300 lb. workpiece weight, 30 HP motor, 100 ATC, 20-4500 RPM, CAT 50 taper, through spindle coolant, chip conveyor, S/N not available

CNC VERTICAL MACHINING CENTERS

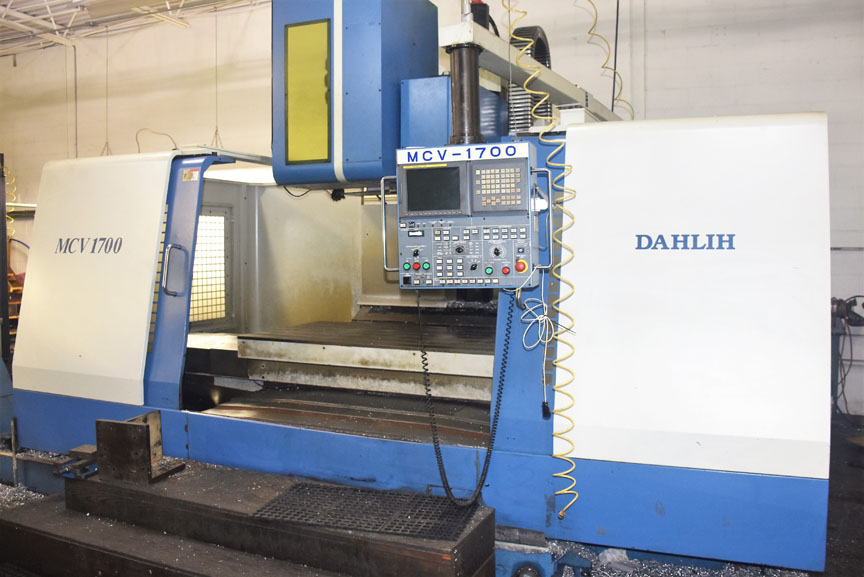

• DAH LIH MCV-1700 CNC Vertical Machining Center, with Fanuc 21iMB CNC, Travels: X-66.92””, Y-31.5”, Z-29.53”, 74.8” x 39.8” table, 4400 lb. max. work weight, 32 ATC, 6000 RPM, 30 HP motor, CAT 50 taper, through spindle coolant, chip conveyor, SN 3001090213, New 2006
• DOOSAN MV-4020/50 CNC Vertical Machining Center, with Fanuc 21iMB CNC control, Travels: X-40.16”, Y-20.08”, Z-24.6”, 47.2” x 19.7” table, 1760 lb. max. work weight, 24 ATC, 8000 RPM, 25 HP motor, CAT 50 taper, chip conveyor, through spindle coolant, S/N AV5E3252, New 2003
• OKK MCV-460 CNC Vertical Machining Center, Travels: X-31.89”, Y-18.11”, Z-20.87”, 41.24” x 17.72” table, 20 HP motor, 4500 RPM, CAT 50, 24 ATC, Neomatic CNC control, S/N 194
• JOHNFORD VMC-1120 CNC Vertical Machining Center, Travels: X-51”, Y-24”, Z-27”, 51” x 21” table, 20 ATC, CAT 50 taper, Mayfran chip conveyor, Fanuc 0M CNC control, S/N VD6170, New 1996
• JOHNFORD VMC-1120 CNC Vertical Machining Center, Travels: X-51”, Y-24”, Z-27”, 51” x 21” table, 20 ATC, CAT 50 taper, Fanuc 0M CNC control, S/N VD6168, New 1996
• JOHNFORD VMC-1120 CNC Vertical Machining Center, Travels: X-51”, Y-24”, Z-27”, 51” x 21” table, 20 ATC, CAT 50 taper, Fanuc 0M CNC control, S/N E09503147, New 1995

CNC LATHE
• DTMG DL-32/1000 CNC Lathe, with Fanuc 0iTC CNC control, 26.77” max. swing over bed, 16.14” max. swing over carriage, 39.37” max. machining length, approx. 48″ between centers, 15″ 3-jaw chuck, 12-position turret, 3.93” spindle bore, 2000 RPM max. spindle speed, 40 HP motor, tool eye, hydraulic tailstock, chip conveyor, S/N not available, New 2008 (approx.)

CNC ROTARY TABLE
• 12″ Yuasa 4th Axis CNC Rotary Table, Stock No. UDX-32001

BRIDGEPORT MILLS
• BRIDGEPORT Series I Mill, 2 HP motor, 42” x 9” table, with power feed, Acu-Rite DRO, S/N 242139
• BRIDGEPORT Series I Mill, 2 HP motor, 42” x 9” table, SN 219152

MISC. MACHINES
• SUNNEN MBB1650 Horizontal Hone, SN 53431, with cabinet, mandrels
• 14” x 36” HARRISON M300 Toolroom Lathe, tool post, S/N 301302
• 6” x 12” SCHULTZ & ANDERSON Horizontal Surface Grinder, 6” x 12” magnetic chuck
• DO ALL Contouring Vertical Band Saw, 35″ throat, with blade welder
• (2) Double-End Pedestal Grinders
• FORK TRUCK
• MITSUBISHI FGC15 Fork Truck, 3000 lb. capacity, Liquid Propane, SN AP8LA51229
• AIR COMPRESSORS
• 20 HP SULLIVAN-PALATEK 20D Air Compressor S/N WX10179
• SULLIVAN-PALATEK Dryer
• SAYLOR-BEALL Air Compressor

TOOLING, INSPECTION, & MISC SHOP SUPPORT
• Tool Holders, Tool Carts, Vises, Fixtures, Perishable Tooling, Carbide Inserts, Hand Tools, Clamps, Fixtures, Tombstones, Stanley Tool Cabinets, Racking & Shelving, 54” x 37” Granite Surface Plate, Block Gage Sets, Pin Gauge Sets, Mitutoyo Height Gage, Shop Support Equipment, Ladders, Desks, & Much More!

Auction Location
1595B Smithtown Ave, Bohemia, NY 11716 Get Directions
