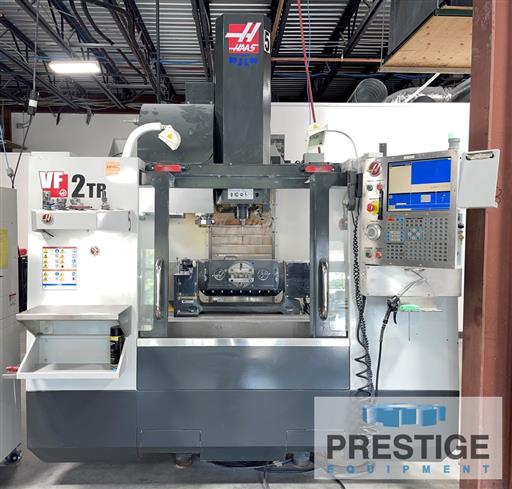

Prestige Equipment is the world's leading provider of Haas VF-2TR 5-Axis CNC Vertical Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓

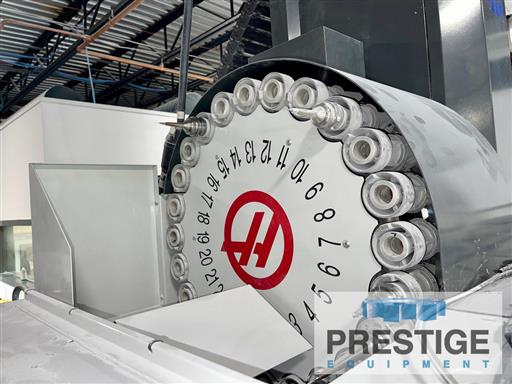

24 Station Side Mounted Tool Changer
✓
30,000 RPM
✓

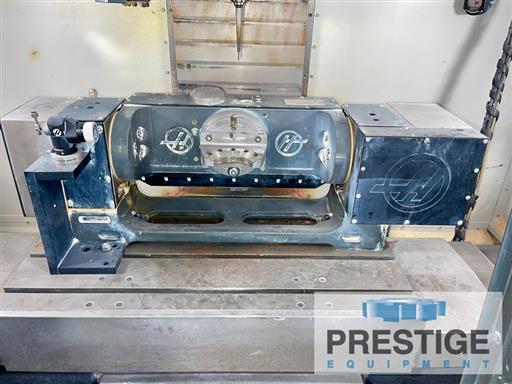

Haas TR-160 Dual Axis Trunnion Rotary Table
✓

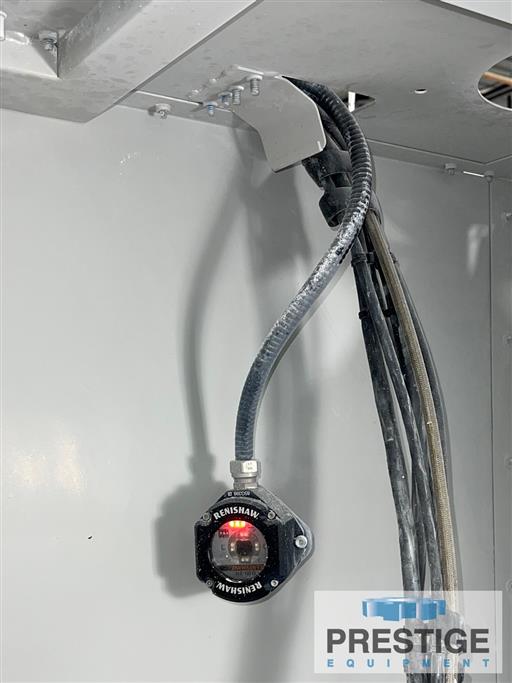

Wireless Intuitive Probing System
Product Specifications
CAPACITY:
X-Axis Travels
30"
Y-Axis Travels
16"
Z-Axis Travel
20"
Table Size
36" x 14"
Maximum Weight on Table
3,000 Lbs.
Spindle Speeds
30,000 RPM
Spindle Taper
BT #30
Spindle Motor (208/230)
20 HP
Rapid Feed Rates (X,Y,Z)
1000 IPM
Tool Changer
24 ATC
Approximate Weight
8,500 lbs
Equipped With:

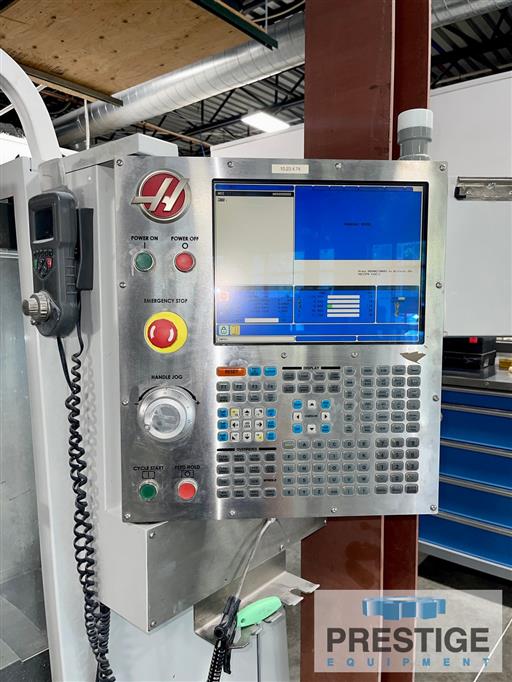

Haas CNC Control
Ethernet Interface
User Definable Macros
Wireless Intuitive Probing System
High Speed Machining
24-Station Side Mounted Automatic Tool Changer

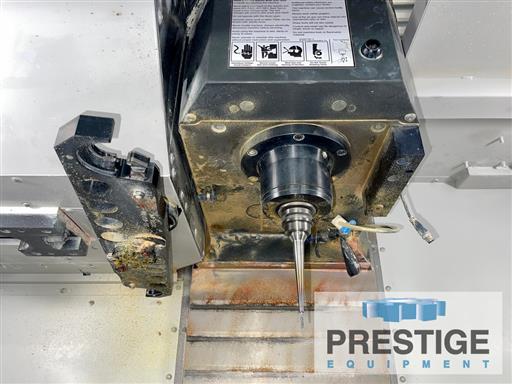

30,000 RPM Spindle
Coordinate Rotation & Scaling
Spindle Orientation
High Intensity Lighting
Haas Low Maintenance Coolant
Pre-Wired for 4th & 5th Axis
Haas TR160 Dual-Axis Trunnion Rotary Table
Remote Jog Handle
Chip Auger
NOTE:
Inspect in Plant Under Power
Features:
✓
24 Station Side Mounted Tool Changer
✓
30,000 RPM
✓
Haas TR-160 Dual Axis Trunnion Rotary Table
✓
Wireless Intuitive Probing System
