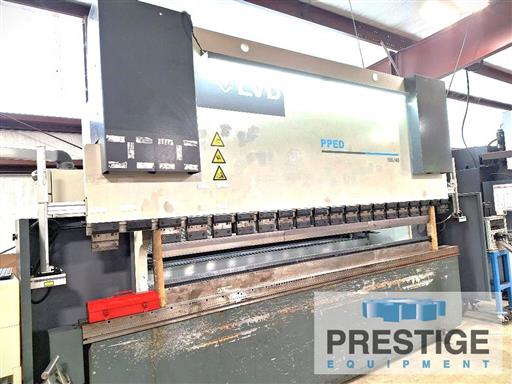

LVD/Strippit 180 Ton x 3988 MM 7-Axis CNC Press Brake
Model:
PPED 165/40
Age:
2018
Ref#:
32890
Prestige Equipment is the world's leading provider of LVD/Strippit 180 Ton x 3988 MM 7-Axis CNC Press Brake & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hydraulic Press Brakes for sale.
Product Specifications
Features:
✓

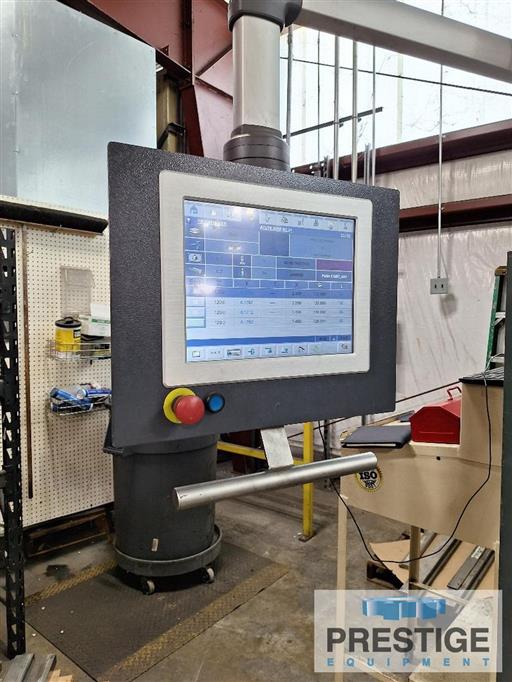

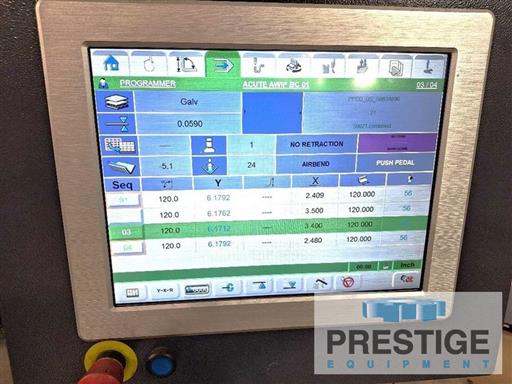

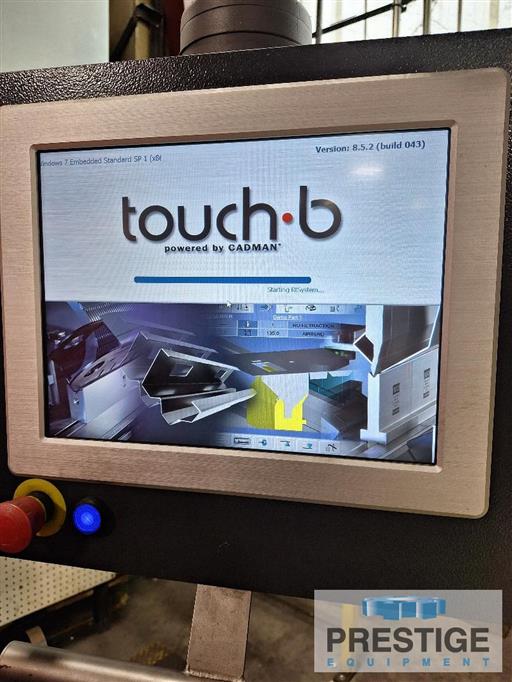

Intuitive Touch-B Cadman CNC Control with 381 MM Monitor
✓
Y-1 & Y-2 Programmable Ram Axis
✓
V-Axis Adjustable Crowning Bed
✓
X1/R/Z1/Z2 4-Axis Back Gauge
✓
Laser Encoders
✓
Tooling
Product Specifications
CAPACITY:
Maximum Tonnage Capacity
180 Ton
Overall Length Of Bed & Ram
3988 MM
Distance Between Housings
3150 MM
Throat Depth
"
Stroke Length
198 MM
Open Height
498 MM
Approach Speed
6579 MM/MIN
Bending Speed
610 MM/MIN
Return Speed
5994 MM/MIN
Motor
18 KW
Approximate Dimensions
4420 MM x 1778 MM x 2718 MM
Approximate Weight
10977 KG
Equipped With:
Intuitive Touch-B Cadman CNC Control with 381 MM Monitor
Y-1 & Y-2 Programmable Ram Axis
V-Axis Adjustable Crowning Bed
X1/R/Z1/Z2 4-Axis Back Gauge
Laser Encoders
Lazer Safe Dender Plus Guarding System
Tooling consisting of (1)3073 MM Punch/Die, 3048 MM Acute Punch, 2134 MM Acute Die, (8) Goosneck Punches, (5) Short Dies
Complete Set of am Clamps
Servo Controlled Hydraulic System
Features:
✓
Intuitive Touch-B Cadman CNC Control with 381 MM Monitor
✓
Y-1 & Y-2 Programmable Ram Axis
✓
V-Axis Adjustable Crowning Bed
✓
X1/R/Z1/Z2 4-Axis Back Gauge
✓
Laser Encoders
✓
Tooling
